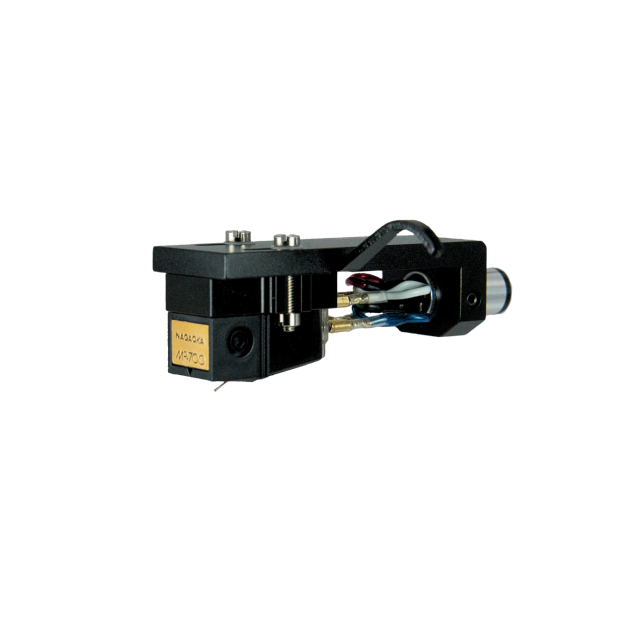

Nagaoka MP-700H Moving Magnet Phono Cartridge in Headshell

The Nagaoka MP-700H MM phono cartridge / headshell come complete as a plug and play upgrade to your existing headshell and cartridge.

The all new flagship model from Nagaoka. The MP-700 features a boron cantilever and a micro-ridge nude diamond stylus measuring 0.12 x 0.3 mil. This precisely crafted combination enhances sound accuracy, ensuring exceptional detail retrieval from vinyl grooves. The MP-700 also incorporates the softest damper, allowing the boron cantilever and micro-ridge stylus to perform at their best. Its design includes a newly integrated suspension wire in the pivot system, which effectively controls the movement of both the cantilever and stylus, providing stability with enhanced separation and clarity across all frequencies to deliver the accurate representation of treble, bass tones and timbre for a more vivid and lifelike listening experience.

Specifications:

• Output Voltage (1kHz, 5cm/sec): 4 mV
• Frequency Response: 20-27,000 Hz
• Channel Separation (1kHz): 30 dB
• Channel Balance (1kHz): 1.0 dB or less
• Recommended Load Impedance: 47 KΩ
• Recommended Load Capacitance: 100 pF
• Vertical Tracking Force: 1.4 g
• Cantilever: Boron
• Stylus Tip: Micro-ridge Naked Diamond
• Cartridge Weight: 8.0 g
• Cartridge & Headshell Weight: 26.3 g
• Replacement Stylus: JN-P700
