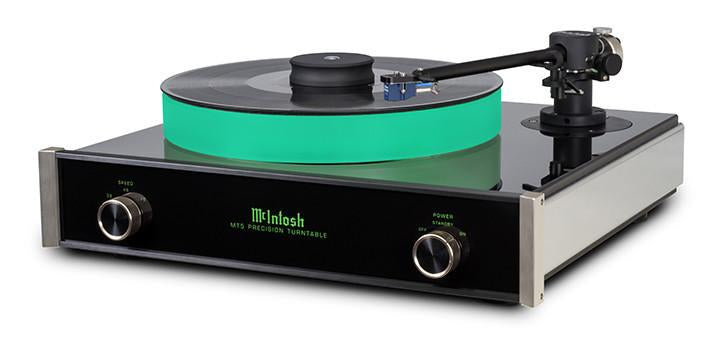

McIntosh MT5 Precision Turntable

(3 units currently in stock in store)

The McIntosh MT-5 comes equipped with a high performance platter and motor drive assembly, precision tone arm and a high output moving coil cartridge that is also compatible with moving magnet inputs. The illuminated, magnetically suspended platter produces an inviting glow that's sure to be a conversation starter among friends and guests alike.

MT-5 is factory adjusted for perfect playback. Tracking force, anti-skate force, cartridge overhang and arm height are all preset for maximum performance. Advanced magnetic platter bearings and a precise belt drive motor spins records with absolute stability and quiet, assuring a pleasurable vinyl listening experience. The custom tone arm and matching moving coil cartridge track records with minimum friction using magnetic anti-skate and horizontal, tone-arm bearings. While the construction of the MT-5 is meticulous, the setup is simple. In a few easy steps, you’ll be ready to enjoy your favorite vinyl recordings.

The MT-5 takes full advantage of the chassis materials used to suppress noise, resonance and coloration so the only sound produced is that which is on your records. A clear, form-fitting dust cover is included to protect the MT-5's moving parts, along with your valued records. The MT-5 turntable is compatible with any McIntosh stereo preamplifier and is a great piece to complete your two-channel stereo system.

Cartridge Specifications:

• Cartridge Type:  Moving Coil, High Output
• Output Level:  2.5 mV at 5 cm/s
• Load Impedance:  1000 Ohms recommended (Preamp MC Input)
• Frequency Response:  20Hz to 50kHz
• Channel Separation:  35dB at 1kHz
• Compliance:  15 x 10-6 cm/dyne
• Recommended Tracking Force:  2.0 g
• Channel Difference:  Less than 0.5 dB at 1kHz
• Total Mass:  6.3 g
• Stylus:  Elliptical Diamond
• Cantilever Material:  Aluminum

Tonearm Specifications:

• Bearing:  Magnetic Sapphire and Ceramic
• Arm Tube:  Dural-Aluminum
• Counterweight:  Eccentric
• Adjustments:  Vertical Tracking Angle, Antiskate, Azimuth

Turntable Specifications:

• Playback Speeds:  33 1/3, 45 and 78 rpm
• Motor Type:  DC Motor with Stainless Steel Brushes
• Speed Control:  Servo System
• Platter:  Silicon Acrylic
• Platter Bearing:  Magnetic Suspended Ceramic

Connectivity:

• Stereo Outputs Unbalanced:  1

Control:

• Power Control Input:  1
• Power Control Output:  1
• Platter Light:  Yes
• Speed Control Fine Adjustment:  Yes

General Specifications:

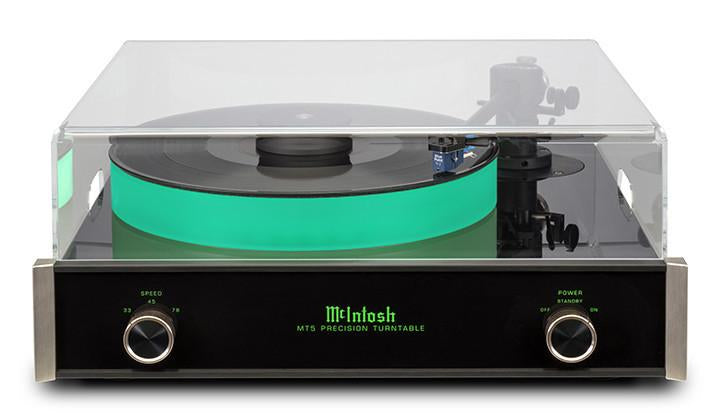

• Dust Cover Included:  Yes
• Dimensions (W x H x D):  17-1/2" (44.45cm) x 7" (17.8cm) (7-1/2" (19.0cm) with dust cover) x 19" (48.26cm)  Note: Tone Arm Height will vary depending on the type of Cartridge installed.
• Weight:  31.5 lbs (14.3 kg)
