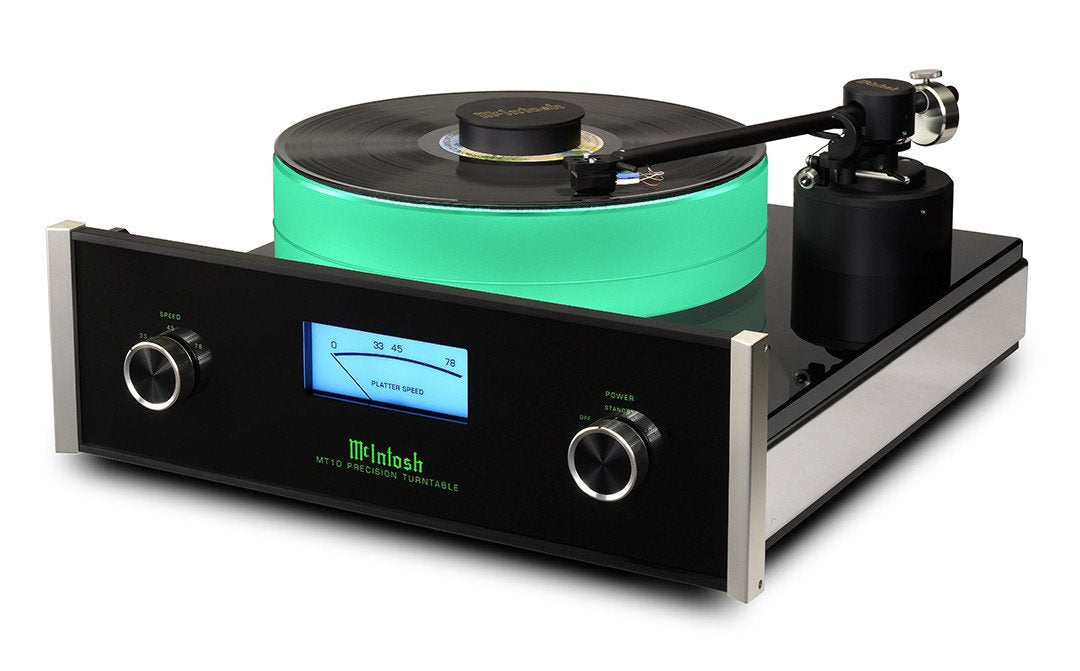

McIntosh MT10 Precision Turntable

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT-10 delivers high performance LP playback with minimal set up. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT-10 turntable.

Cartridge Specifications:

• Cartridge Type:  Moving Coil, Low Output
• Output Level:  0.5 mV at 5 cm/s
• Load Impedance:  400 to 500 Ohms recommended
• Frequency Response:  20Hz to 50kHz
• Channel Separation:  Greater than 30dB at 1Khz
• Compliance:  6 x 10-6 cm/dyne
• Recommended Tracking Force:  2.4 g
• Channel Difference:  Less than 0.3 dB at 1kHz
• Total Mass:  11 g
• Stylus:  Elliptical Diamond
• Cantilever Material:  Aluminum

Tonearm Specifications:

• Bearing:  Sapphire and Ceramic
• Arm Tube:  Dural-Aluminum
• Counterweight:  Eccentric
• Adjustments:  Vertical Tracking Angle, Antiskate, Azimuth

Turntable Specifications:

• Playback Speeds:  33 1/3, 45 and 78 rpm
• Motor Type:  DC Brushless
• Speed Control:  Electronic w/ braking feature
• Platter:  Silicon Acrylic
• Platter Bearing:  Magnetic Suspended Ceramic

Connectivity:

• Stereo Outputs Unbalanced:  1

Control:

• Power Control Input:  1
• Power Control Output:  1
• Platter Light:  Yes
• Speed Control Fine Adjustment:  Yes

General Specifications:

• Dust Cover Included:  No
• Dimensions (W x H x D):  17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm)  Note: Tone Arm Height will vary depending on the type of Cartridge installed.
• Weight:  42 lbs (19 kg)
