MartinLogan Abyss 10 Subwoofer

Name: MartinLogan Abyss 10 Subwoofer
Brand: Martin Logan
Price: 1599.99 CAD
Availability: InStock

$1,599.99

$1,599.99 $1,999.99

Sale Sold out

Shipping calculated at checkout.

Quantity

Like its smaller sibling, Abyss 8, the Abyss 10 provides deceptively strong, yet detailed sound thanks to its 10” Hybrid Woofer System. Abyss 10 utilizes a pair of 10” passive radiators to bolster its active 10” woofer, resulting in even higher levels of output capability and deeper low frequency extension. This woofer system is driven by powerful amplification, and a precision DSP engine, all contained inside an elegant 1” thick cabinet. To complement the impressive output and speed of Abyss 10, MartinLogan engineers included a variety of connections ranging from XLR to the built-in wireless option. Abyss 10 also features MartinLogan’s powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

Digital Signal Processing	Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response	22–120 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer	Triple 10" (25.4cm) Hybrid Woofer System consisting of a single high-excursion, anodized-aluminum cone in a stamped steel basket with dual anodized-aluminum cone passive radiators
Cabinet	Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF structure with reinforced woofer baffles and center brace
Amplifier	Magnitude MT-1.6kW Amplifier with 1,600W peak (800W continuous)

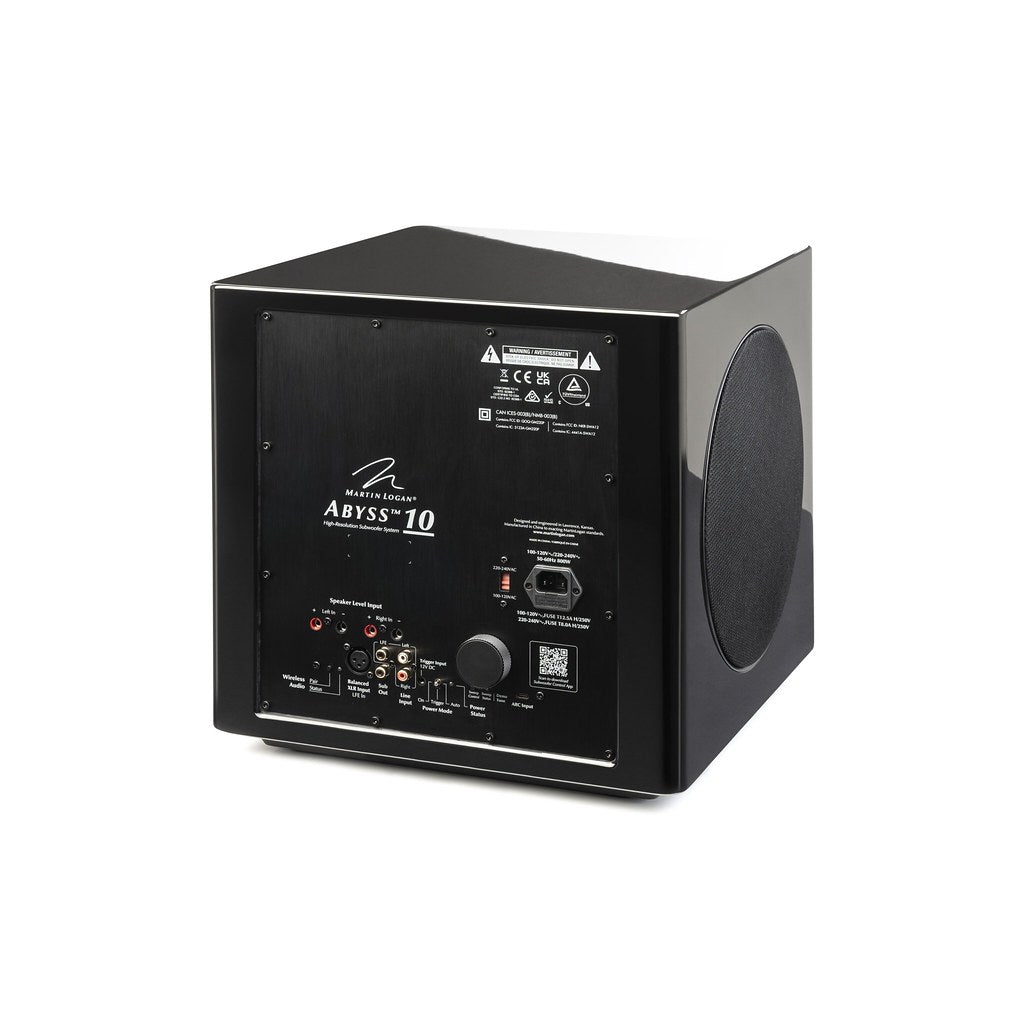

Controls (Backplate)	Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)	Level: -40 to 12dB (Min-Max) Low-Pass Filter (Frequency): 35–120Hz (1° Increments) Low-Pass Filter (Order): Bypass, Third, Fourth Phase: 0–180° (1° Increments) Phase (Polarity): Normal, Inverted Preset Listening Modes: Movie, Music, Night 20–30Hz Level: ±10dB Anthem Room Correction (ARC Genesis): On, Off Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Wireless Inputs	Integrated Wireless Receiver, Wireless Transmitter Included
Inputs	Line Level: Left, Right, and LFEXLR: LFE Speaker Level: Left and Right (requires banana plugs)
Power Draw	Max: 800W Standby (Wireless Disabled): 0.5W Standby (Wireless Enabled): <2W *Transmitter and Subwoofer combined
Feet	Integrated Anti-Vibration Feet (carpet spikes included)
Weight	55.6 lbs (25.2 kg)
Dimensions (H x W x D)	15.4" x 15" x 15" (39.1cm x 38cm x 38cm)
Finish	Gloss Black
