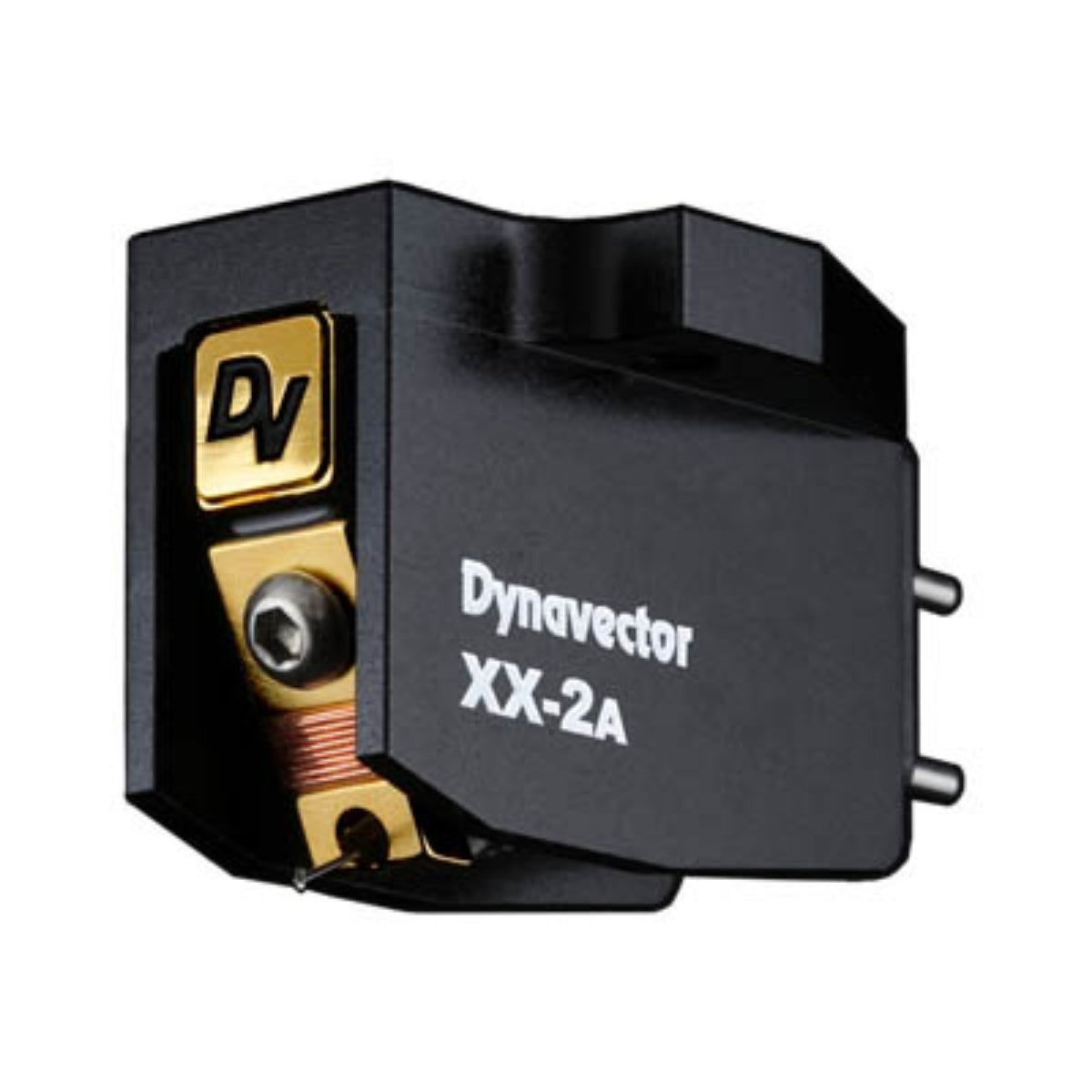

Dynavector DV XX-2A MC Cartridge
Couldn't load pickup availability
Established in 1978, Dynavector has been at the forefront of high-end audio manufacturing, introducing a multitude of high-performance cartridges to the market. Our approach to development is deeply rooted in academic engineering theory, a tradition passed down by our founder.
Since the 1990s, we have pioneered the development of cutting-edge vibration systems, including ultra-fine wire high-output coils and gemstone cantilevers. Central to our focus has been the refinement of magnetic circuits. As a result, Flux Damper to stabilise magnetic flux and Softened Magnetism to reduce magnetic flux fluctuations were developed and installed into our cartridges.
In 2024, we achieved a significant breakthrough by enhancing the physical properties of our magnetic circuits, resulting in unparalleled sound quality.
- Type
- low output moving coil cartridge
with flux damper and alnico magnet - Output Voltage
- 0.28 mV (at 1KHz, 5cm/sec.)
- Channel Separation
- 30 dB (at 1KHz)
- Channel balance
- 1.0 dB (at 1KHz)
- Frequency response
- 20 - 20,000 Hz(±1dB)
- Compliance
- 10 mm/N
- Tracking force
- 1.8 - 2.2 g
- Impedance
- 6 ohms
- Recommended load impedance
- > 30 ohms
- Cantilever
- 6mm length solid boron
- Stylus tip
- PF Line contact shape,
stylus radius: 7 x 30 micron - Weight
- 8.9 g
-
Vendor:
Dynavector
-
Type:
Phono cartridge
- Tags: Cartridge, Dv xx-2a, Dynavector, Phono, Phonocartridge
