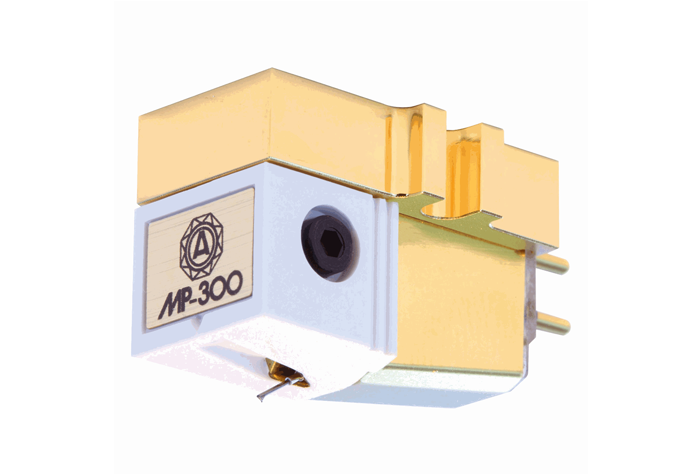

Nagaoka MP-300 Moving Magnet Phono Cartridge

The Nagaoka MP-300 phonograph cartridge offers sophistication, refinement and high-definition at all audible frequencies. It is nimble on the grooves and easy on the ears so you keep wanting to listen. The Nagaoka MP300 is an advanced technology cartridge that is destined to become a classic out of the box.

Features:

• Exclusive super rigid body for ultra resonance and superb fidelity
• Superfine polished special eliptical bonded diamond stylus
• Powerfull samarium cobalt magnet
• Hardened low-mass, high strenght boron cantilever
• Carbon fibre reinforced plastic shoe
• Anti ferro magnetic permalloy shield casing

Specifications:

• Type:  Moving permalloy
• Cantilever:  High-strengh Boron
• Stylus Type:  Superfine elliptical diamond with 0.4 x 0.7 mil
• Weight:  8 g
• Output Voltage @ 1kHz,5cm/sec:  3mV
• Frequency response:  20Hz-25kHz
• Channel Balance @ 1kHz:  > 1dB
• Channel Separation @ 1kHz:  > 25dB
• Recommended Loading:  47k ohms
• Dynamic Compliance:  7.2 x 10-6 cm/dyne
• Static Compliance:  20 x 10-6 cm/dyne
• Tracking Force Range:  1.3 - 1.8 g
• Stylus Replacement:  Nagaoka JN-P300
