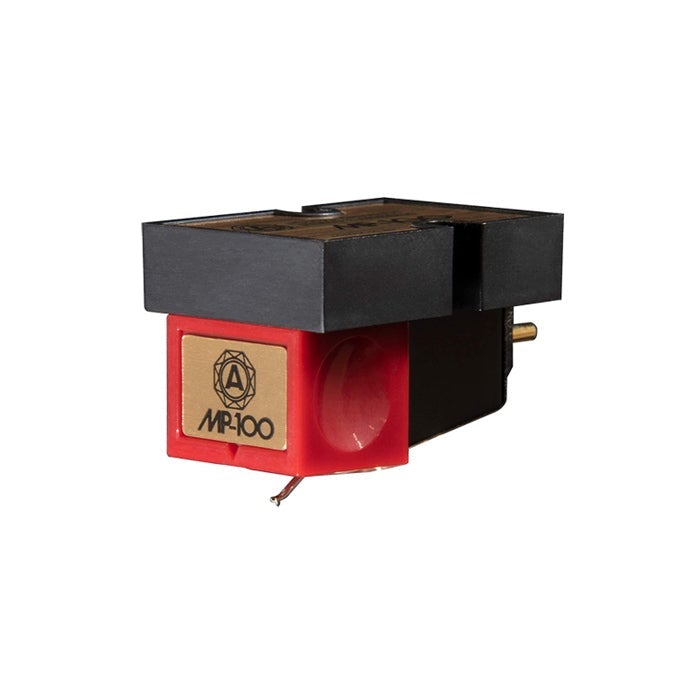

Nagaoka MP-100 Moving Magnet Phono Cartridge

The Nagaoka MP-100 phonograph cartridge offers musical clarity and expression beyond its price and competitors - a splendid upward start toward long term musical enjoyment.  Half-inch system with conical diamond on lightweight aluminum cantilver.

Features:

• Superfine polished conical diamond bonded stylus
• Powerfull samarium cobalt magnet
• Lightweight aluminum alloy cantilever
• Carbon fibre reinforced plastic shoe
• Anti ferro magnetic permalloy shield casing

Specifications:

• Type:  Moving permalloy
• Cantilever:  Lightweight aluminum alloy
• Stylus type:  Conical Diamond with .0006 inch radius
• Weight:  6.5 g
• Output Voltage @ 1kHz,5cm/sec:  5mV
• Frequency Response:   20Hz-20kHz
• Channel Balance @ 1kHz:  > 2dB
• Channel Separation @ 1kHz:  > 22dB
• Recommended Loading:  47k ohms
• Dynamic Compliance:  5.5 x 10-6 cm/dyne
• Static Compliance:  18 x 10-6 cm/dyne
• Tracking Force Range:  1.8 - 2.3 g
• Stylus Replacement:  Nagaoka JN-P100
