Accuphase AD-60 Phono Equalizer Module
Regular price
$1,599.00 CAD
Sale price
$1,599.00 CAD
Regular price
Unit price
per
Sale
Sold out
Shipping calculated at checkout.
Please Contact Us To Purchase. Do NOT use financing option to purchase, Product Not Available For Sale Online.

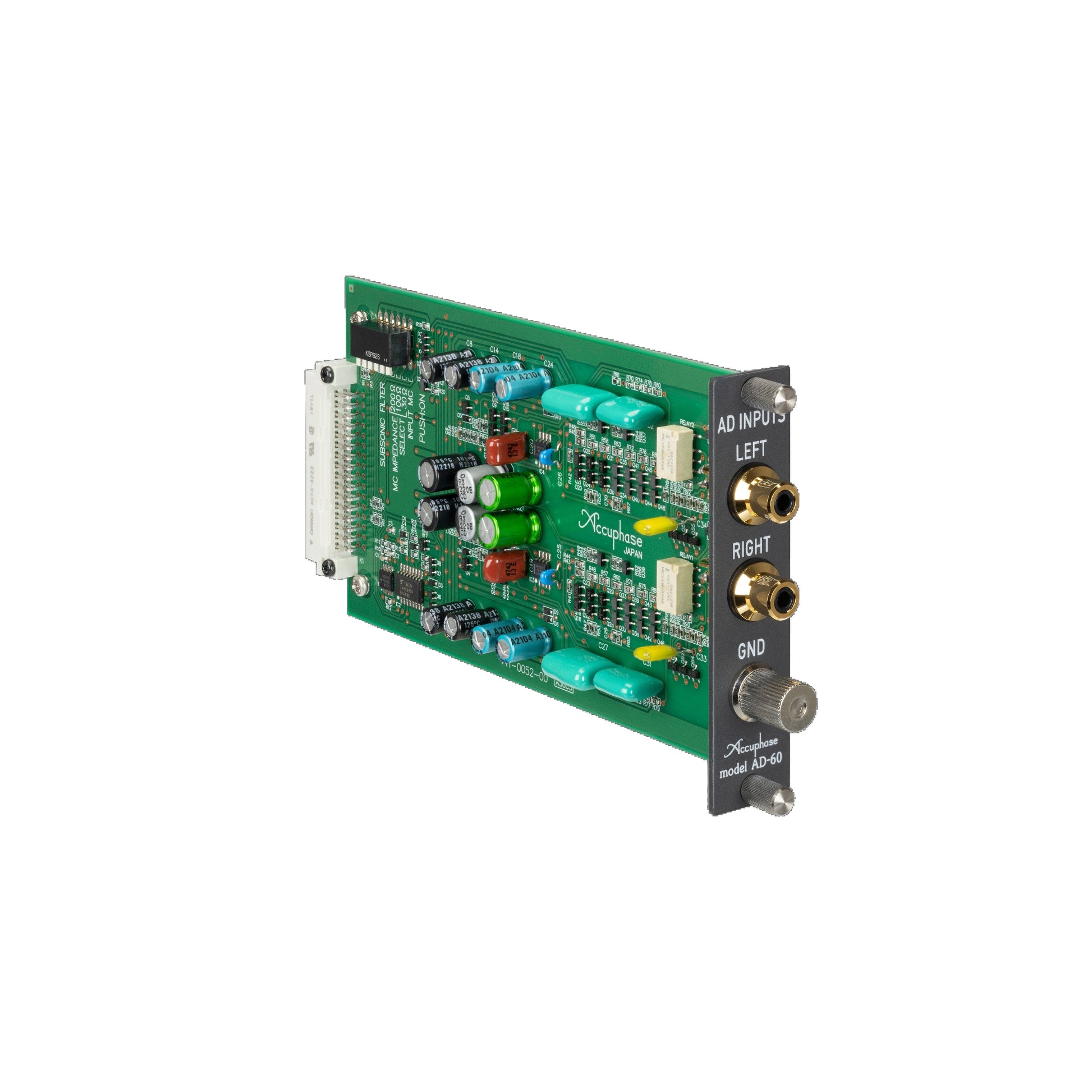

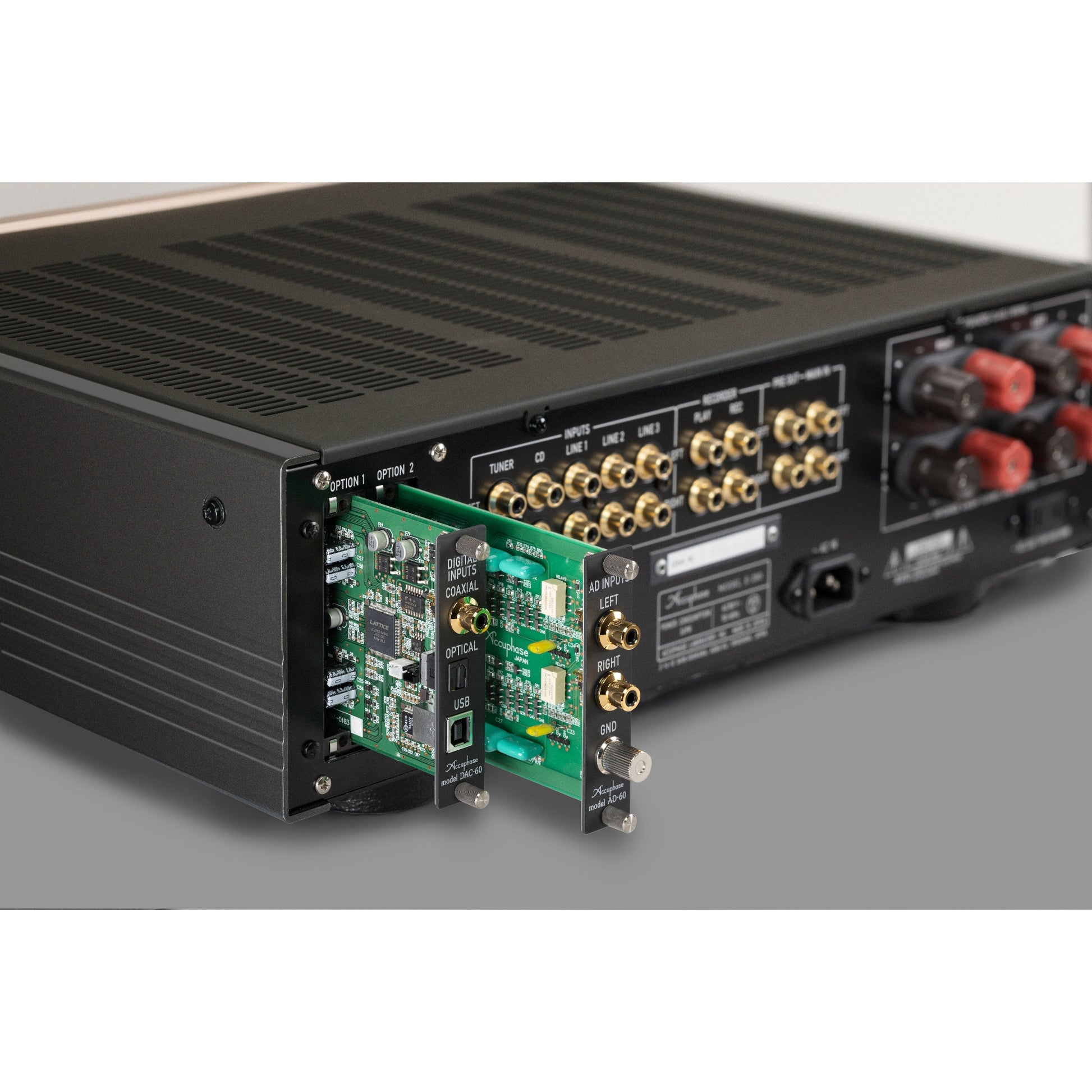

High performance phonostage option board for compatible Accuphase products.
- MC/MM switching is possible on the front panel of the enabled device.
- Internal DIP switches control MC input impedance and subsonic filter on/off.
| MC : | Moving Coil type |
| Gain : | 66 dB |
| Input Impedance : | 30/100/200/300 ohms (selectable) |
| MM : | Moving Magnet type |
| Gain : | 40 dB |
| Input Impedance : | 47 kilohms |
| Subsonic filter : | 25Hz -12dB/octave |
GUARANTEED SPECIFICATIONS ( Measured according to IEC 60268-3 ) When attached to the C-2300.
| Switch Position | Sensitivity | S/N ratio (EIA) |
| MM | 2.5mV | 80dB |
| MC | 0.126mV | 68dB |
SUBSONIC FILTER ： 25Hz -12dB / octave
