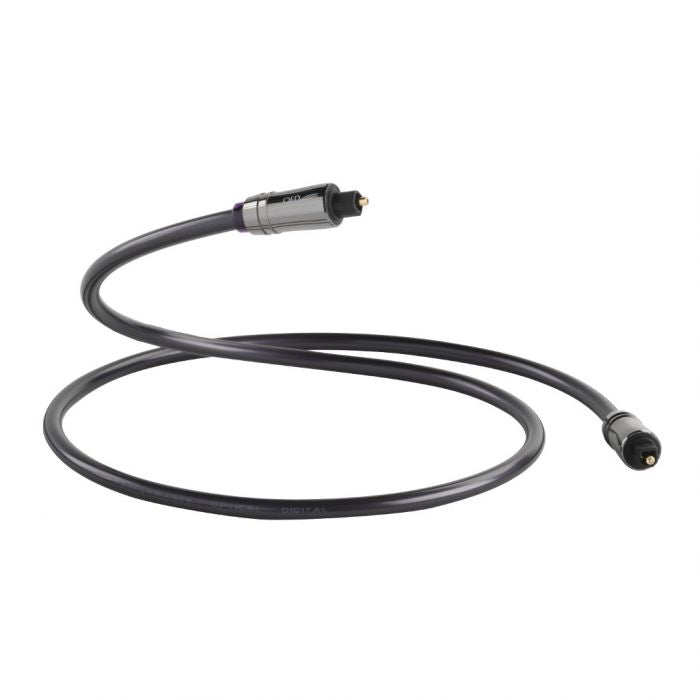

QED Performance Optical Graphite Cable
Couldn't load pickup availability
QED’s Multi-Award Winning Toslink Optical Digital Audio Cable
The new optical fibre boasts half the signal attenuation per metre of the previous model, which means ‘Performance Graphite comfortably transmits the higher bandwidth signals demanded by today’s multi-channel digital audio links.
The cable features a stepped refractive index core that together with precision cladding techniques minimizes light absorption and modal dispersion of single mode optical signals at the fibre boundary.
This reduces the angle of incidence at which total internal reflection occurs so that more rays can propagate along the cable, which in turn makes for decreased jitter and improved audio data transmission.
The award winning Performance Graphite Optical cable allows you to experience superior sound quality when connecting DAC’s, TVs, CD players and Blu-rayTM players to amplifiers or receivers. Performance Optical uses a polymethyl methacrylate (PMMA) acrylic glass optical fibre to comfortably transmit the higher bandwidth signals demanded by today’s multi-channel digital audio links. The cable is optimized for a ‘very low jitter’ design to reduce digital errors, making for a cleaner audio data transmission.
Specifications
Polymethyl Methacrylate (PMMA) Acrylic Glass Optical Fibre – This new optical fibre boasts half the signal attenuation per metre of the previous Performance model, which means ‘Performance Graphite’ comfortably transmits the higher bandwidth signals for multi channel audio. For HD multi channel audio applications (over 12MHz) please see our Reference Optical Quartz cable.
- Plastic Optical Fibre (POF) Core Of Acrylic Glass
- Stepped Refractive Index
- Fluorinated Polymer Cladding Material
- 24K Gold Plated Toslink Connectors
- Precision Engineered Plug With Integrated Grip
- Attenuation < 0.15dB/m (650nm)
- Numerical Aperture 0.5
- Minimum Bend Radius 9 mm
-
