PS Audio StellarGold Preamplifier
Couldn't load pickup availability
Preamplifiers act as the backbone of premium audio setups, overseeing input choices, initiating the amplification process, managing volume and balance, and ensuring electrical separation between sound sources and amplifiers. When you add the StellarGold Preamplifier into your audio chain—bridging devices like DACs, phono preamps, tuners, or other auxiliaries with your amplifier—a magical sonic revelation unfolds: more realism, life, and space around each performer. It's time to take control of your system and add that missing element, a great preamplifier. StellarGold.
Overview
The StellarGold Preamplifier is a remarkably musical instrument. It is an excellent uncompromised interface between your sources and power amplifier. Designed by Darren Myers, the StellarGold outperforms preamplifiers at anywhere near its price. Preamplifiers play a critical role in any separates audio system, strategically positioned between sources of music: CD players, phono preamps, DACs, tape recorders and tuners – and your power amplifier – the preamp serves essential roles of control and isolation. Control is simple in concept, but extraordinarily difficult to design in an acoustically transparent manner. Control duties such as input switching, volume, balance, and amplification can place unwanted acoustic thumbprints on the music if not designed with extraordinary care. The StellarGold is one amazing preamplifier that we can't wait for you to hear in your system.
| Unit Weight | 24.1 lbs or 10.9 kg |
| Unit Dimensions | 17"W x 3.3"H x 13"D (with knob, without knob 12"D) [43.18 cm x 8.38 cm x 33.02 (with knob, without 30.48 cm)] |
| Shipping Weight | 27.6 lbs or 12.5 kg |
| Shipping Dimensions | 22"W x 8"H x 17"D [55.88 cm x 20.32 cm x 43.18 cm] |
Power Requirements |
|
|---|---|
| Input Power | Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz |
| Power Consumption | 15W |
Connectors |
|
|---|---|

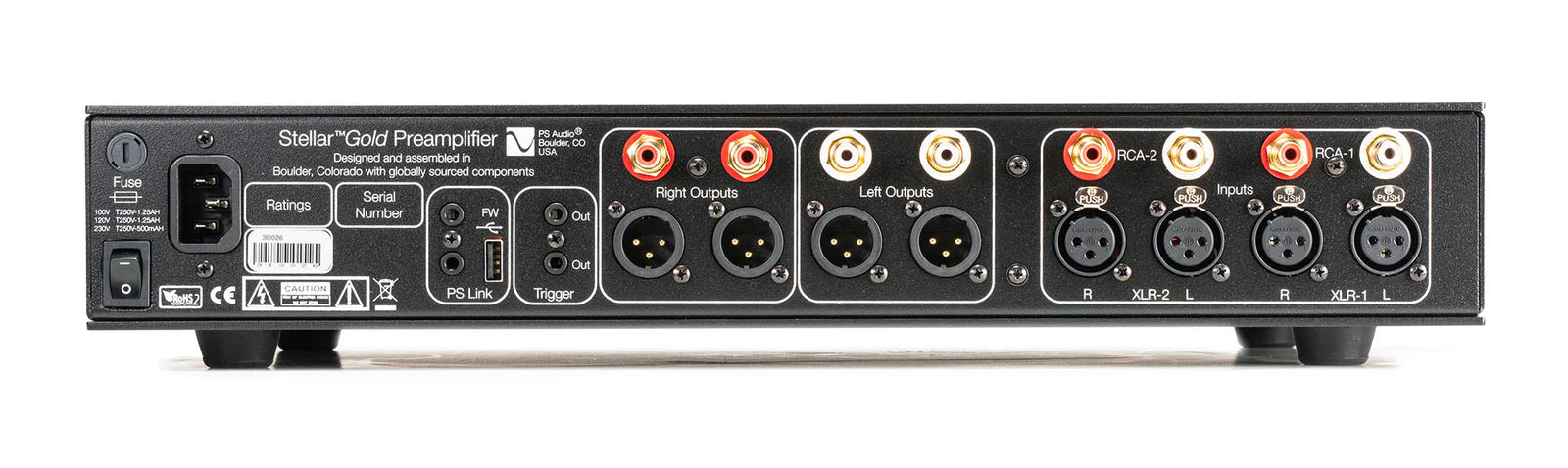

| Audio Inputs | RCA / Single-Ended: 2 pair XLR / Balanced: 2 pair |
| Audio Outputs | RCA / Single-Ended: 2 pair XLR / Balanced: 2 pair |
| Trigger Output | 2 |
| USB | For USB firmware update only |
Performance |
|
|---|---|
| Max Gain | 12.6dB |
| Frequency Response | 15Hz-150kHz, +/- 0.1dB |
| Input Impedance | 50K Ω RCA / Single-Ended 100K Ω XLR / Balanced |
| Bandwidth | 5Hz-500kHz, -3dB |
| THD | < .0002% @ 1kHz, 1VRMS input |
| THD+N | < .0003% @ 1kHz, 1VRMS input |
| IMD | .0005% @ 1VRMS input, CCIF, 20kHz mean, 1kHz difference |
| Crosstalk | -115dB, One channel driven |
| Output level | 10VRMS Single-ended / 20VRMS Balanced @ 1% THD+N |
| Output Impedance | 100Ω |
-
