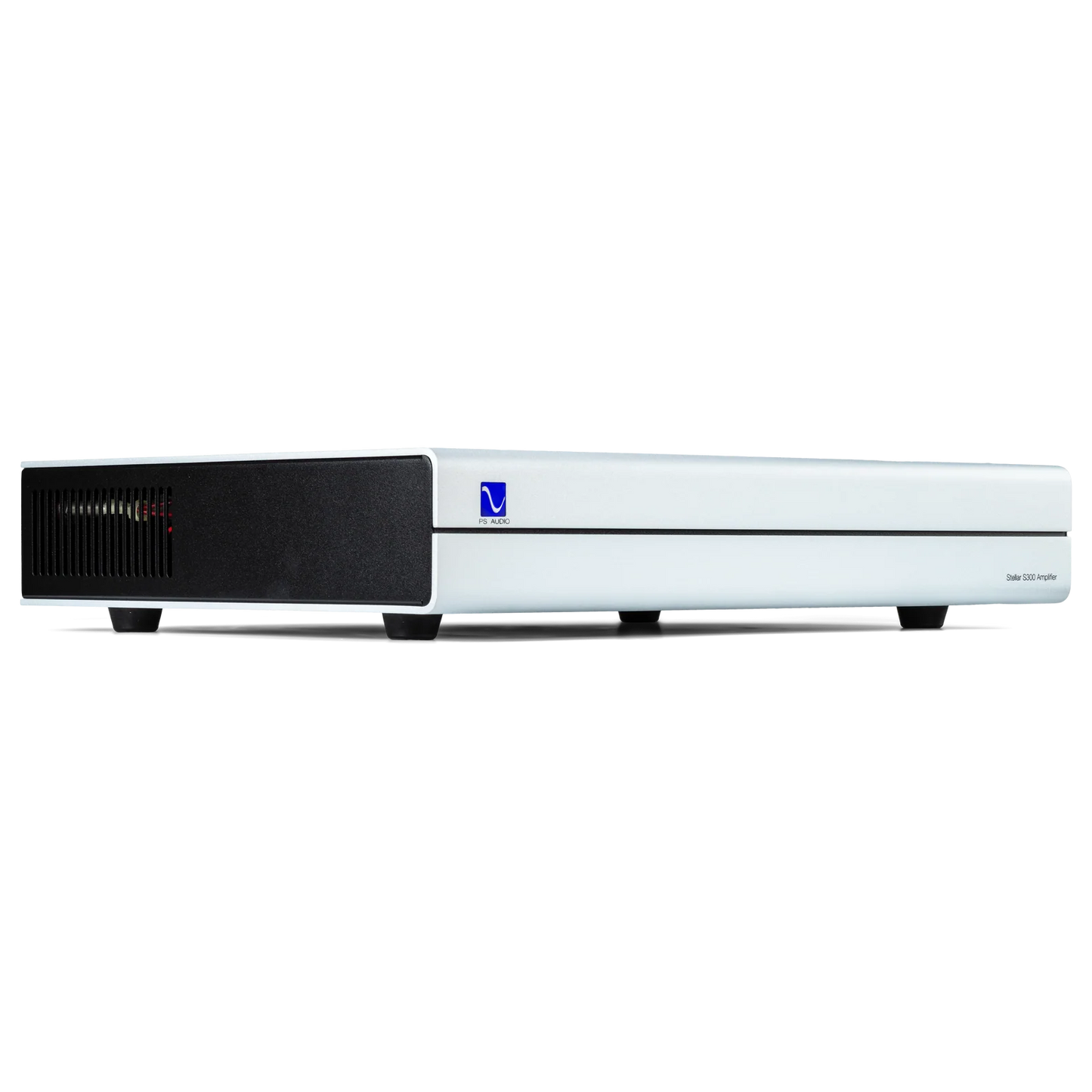

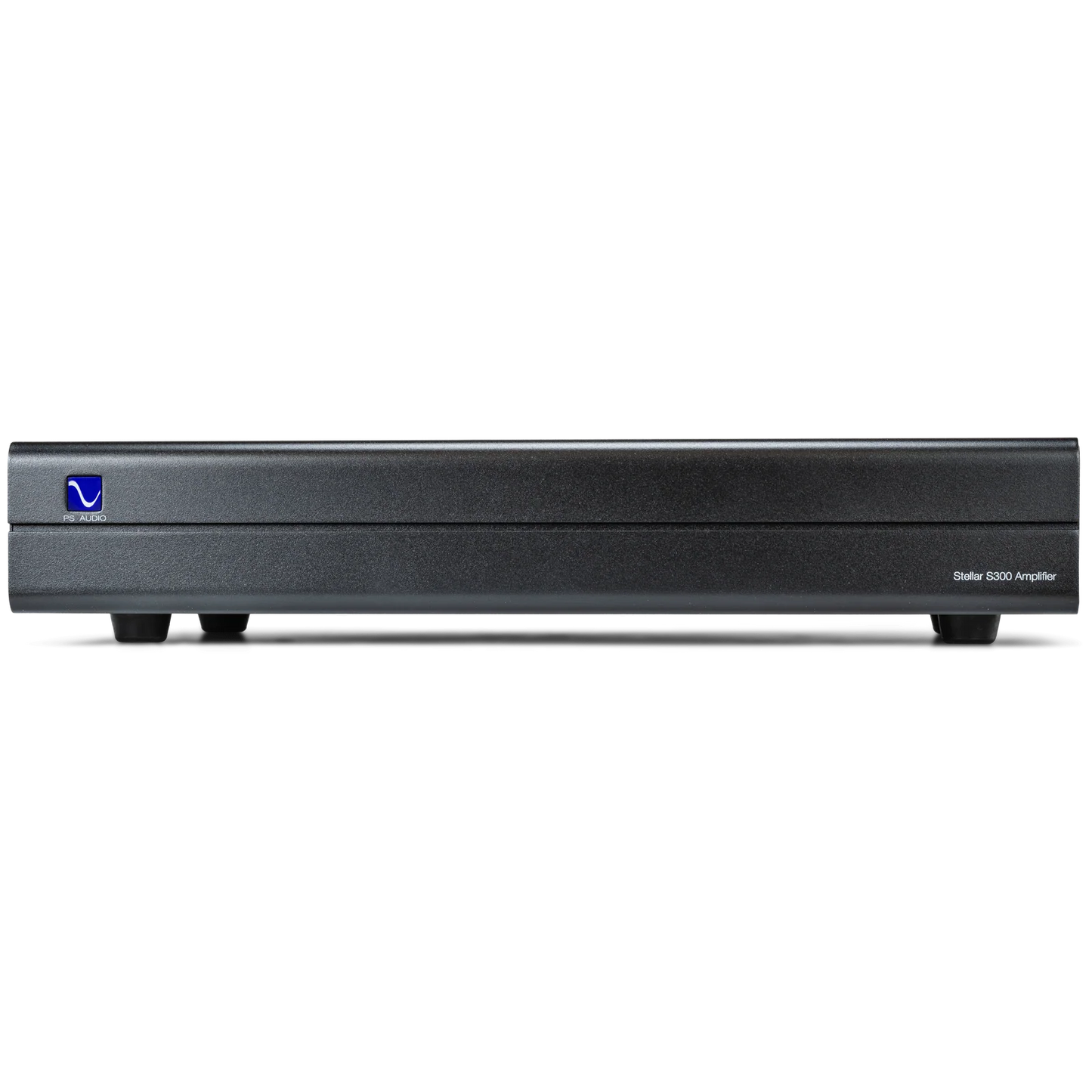

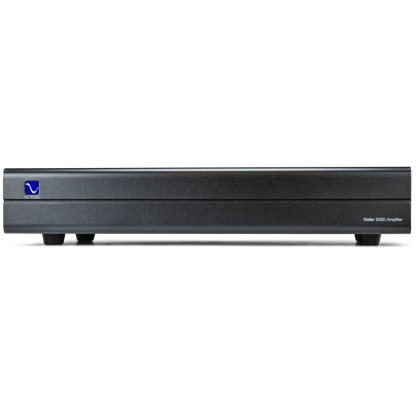

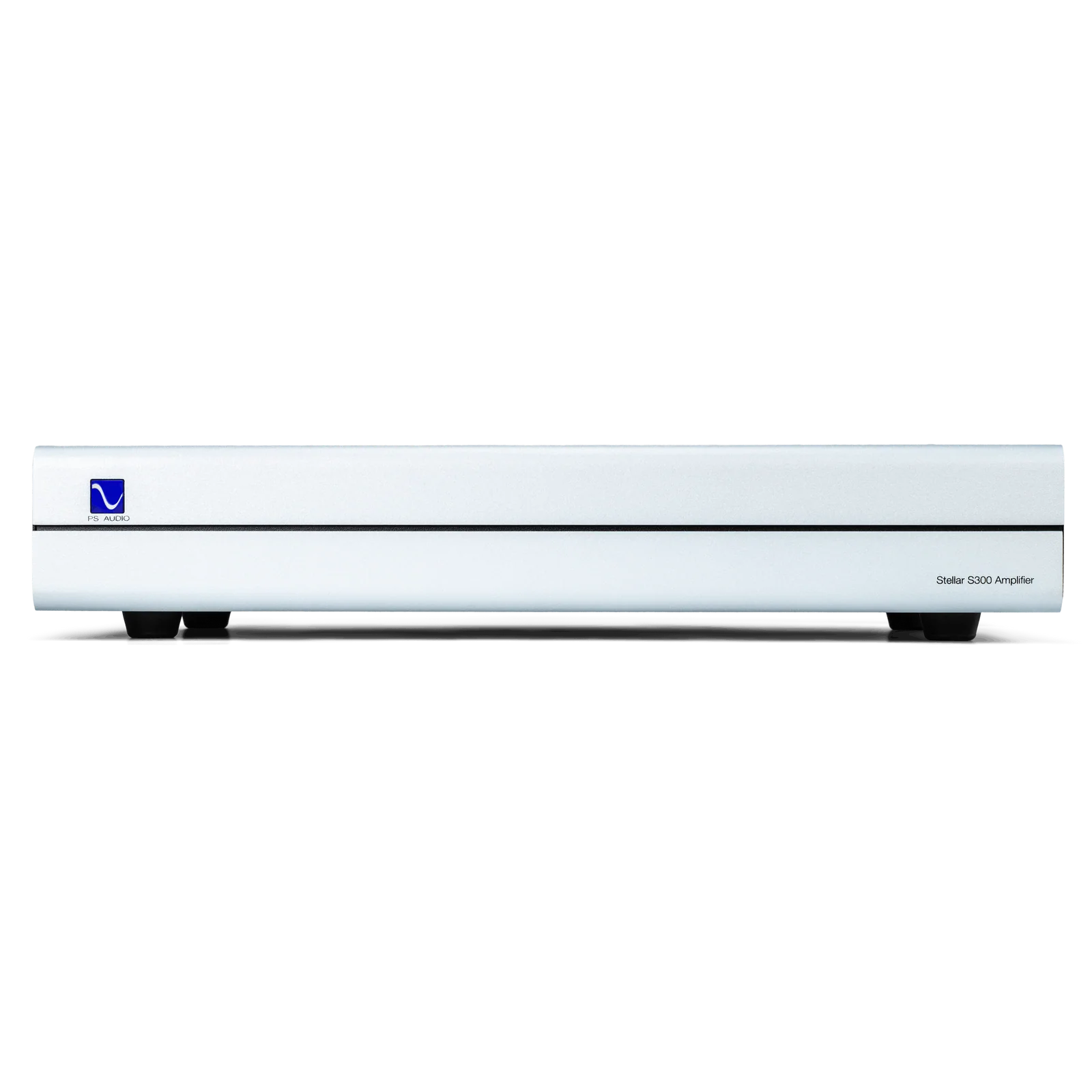

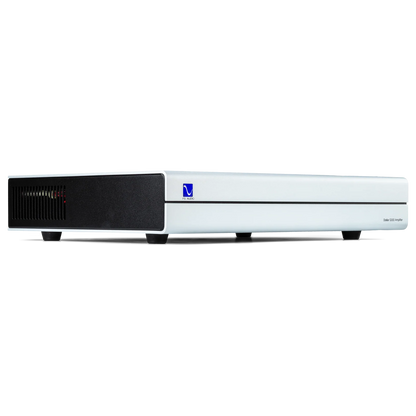

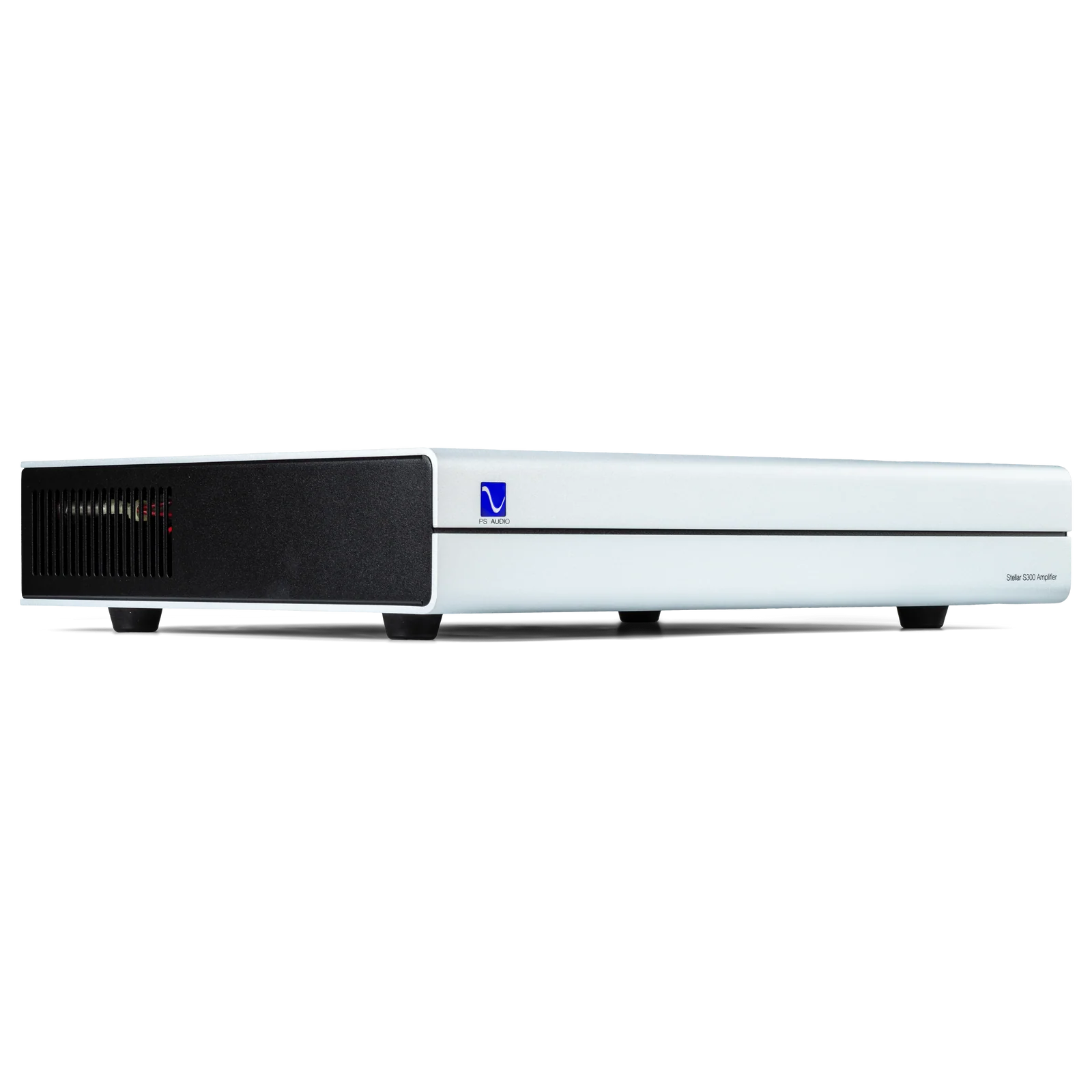

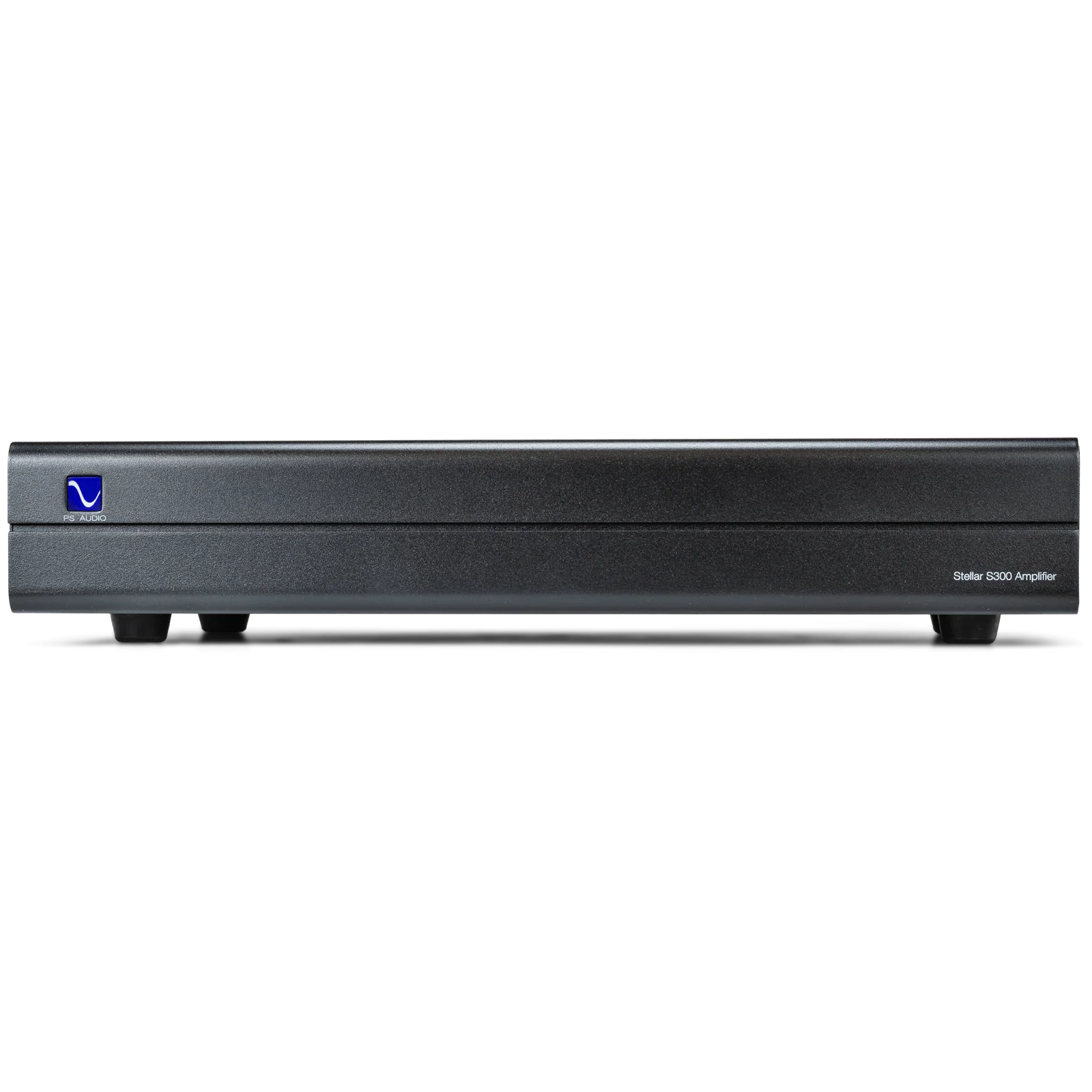

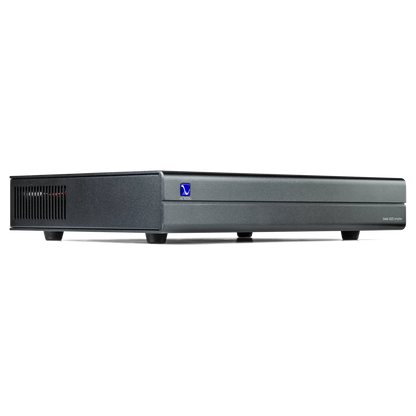

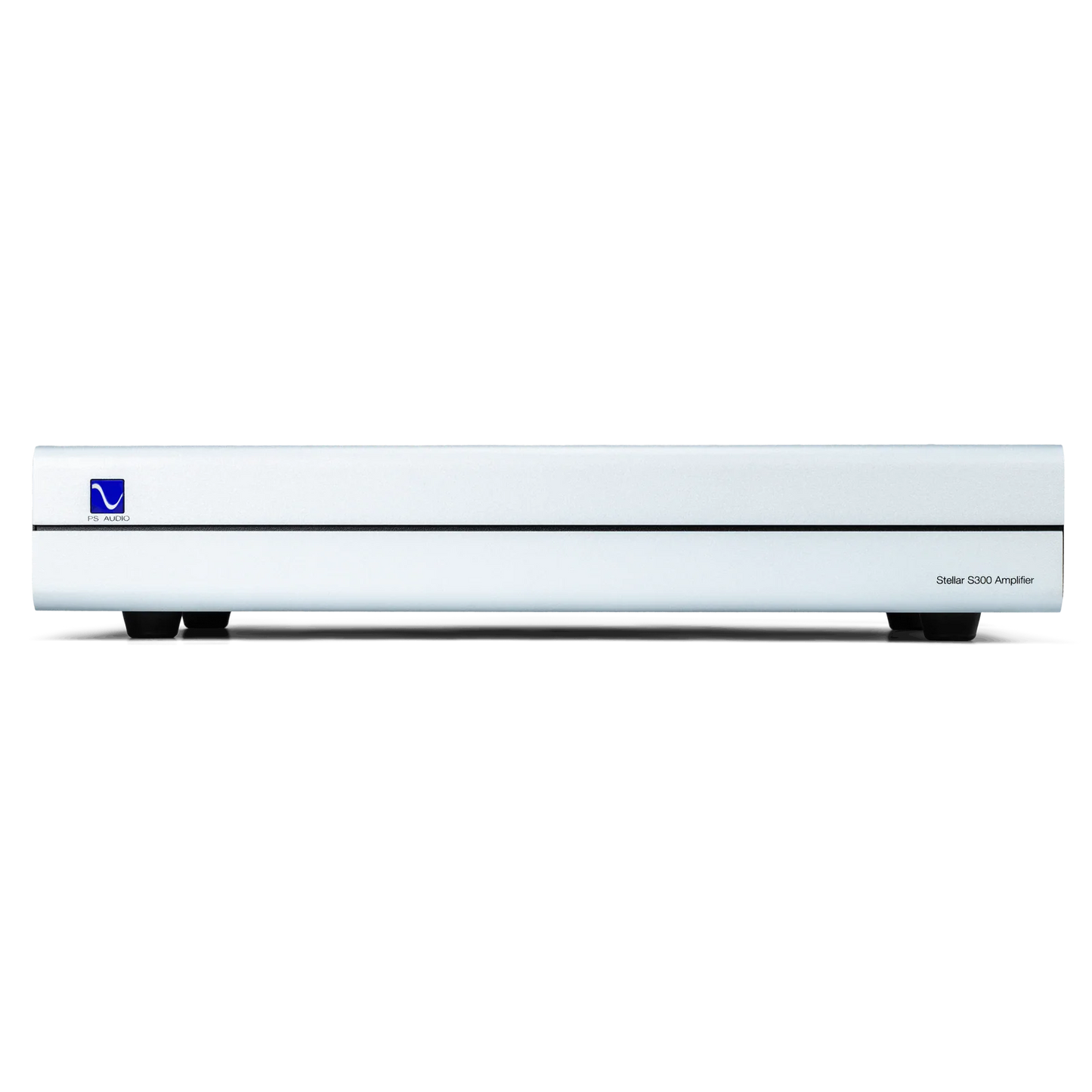

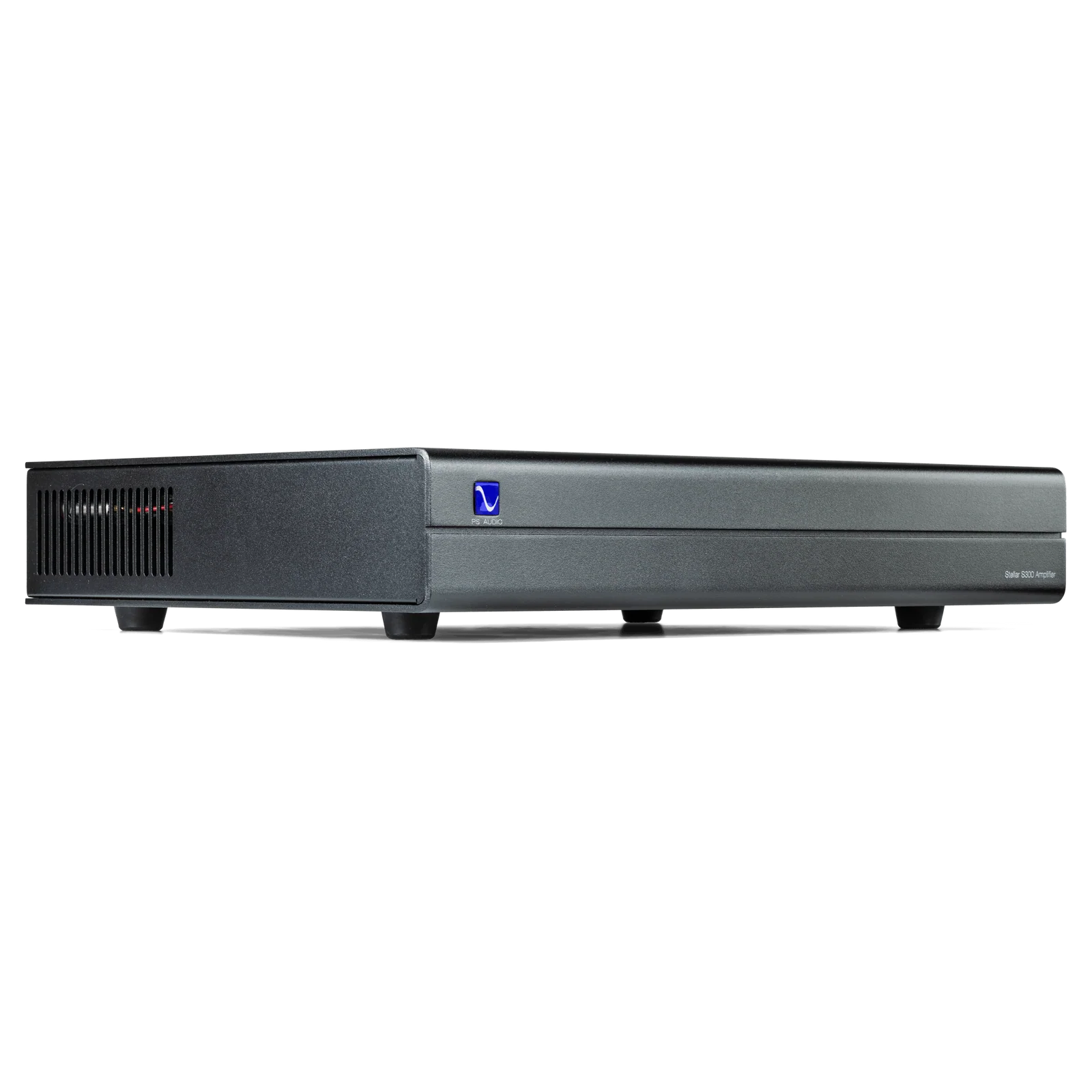

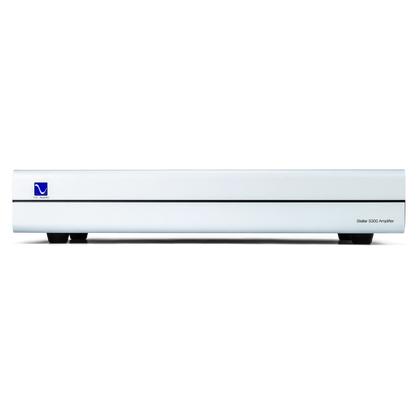

PS Audio Stellar S300 Stereo Power Amplifier
Couldn't load pickup availability
From the deepest bass to the warmest, sweetest highs, the Stellar S300 makes any loudspeaker sing and is our most affordable stereo power amplifier ever.
Breathe new life into your loudspeakers with the Stellar S300, a full-sized, affordable stereo power amplifier that honors the music and controls your loudspeakers better than you ever imagined possible. The S300 combines the slam, linearity, and toe-tapping pacing of a Class D output stage with the warmth, grace, and rich inner detail of Stellar's Class A Analog Cell. The results are nothing short of ground breaking. Liberate a wealth of untapped energy trapped in your media library. Plumb music’s subterranean depths and finally hear the bass your speakers were capable of. Revel in rich layers of fine, full detail. Marvel at the deep, extraordinary, wall-to-wall soundstage. Effortless. Lush. Stellar.
Overview
The S300 is an extraordinarily musical power amplifier rated at 140 Watts per channel into 8Ω and 300 Watts per channel into 4Ω. Power enough for even the most demanding speakers. The S300 design marries the best of two worlds: an ultra linear high-current output power stage with a discrete Class A MOSFET based AnalogCell input stage. Between them, the S300 delivers powerful, authoritative control over the loudspeakers, while maintaining a perfectly layered soundstage under the most complex musical passages. Designed by PS Audio engineer Darren Myers, who invested hundreds of hours of tuning, voicing, and perfectionist tweaking, the results are extraordinarily musical. Stellar amplifiers never draw attention to themselves, and are one of our highest value offerings in amplification, a rare quality in amplifiers of any price.
| Unit Weight | 13 lbs [5.9 kg] |
| Unit Dimensions | 17”W x 3”H x 12”D (13"D w/connectors) |
| Shipping Weight | 16.5 lbs [7.5 kg] |
| Shipping Dimensions | 22”W x 8”H x 17”D |
| Color Options | Black Silver |
| Voltage Options (Factory set only) |
Japan 100V North America 120V Europe/Asia/Australia/New Zealand 230V |

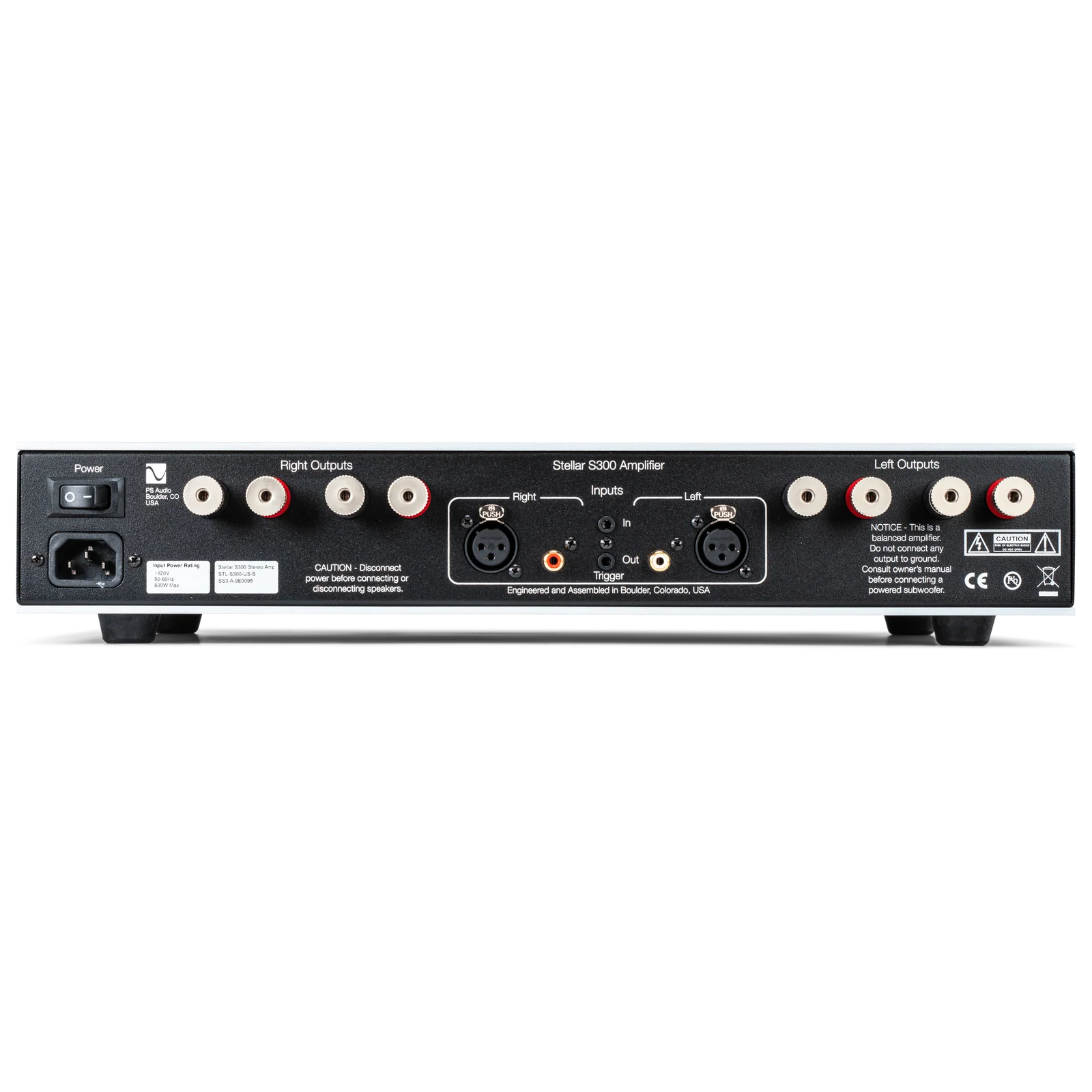

| Mains Power Inputs | IEC C14 |
| Idle Power Consumption | 13W |
| Accessories Included | US (NEMA 5-15P) (all versions) Schuko (CEE7/7) (230V version) UK (BS 1363) (230V version) |

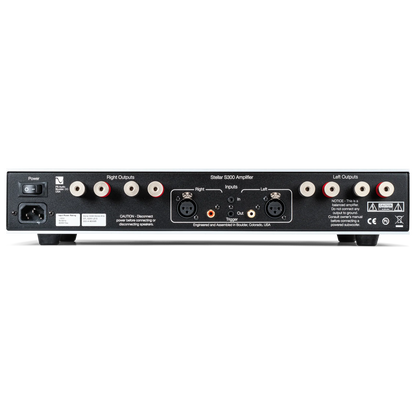

| Audio Inputs | RCA (Unbalanced) XLR (Balanced) |
| Speaker Outputs | Copper base nickel plated binding posts (2 pair per channel) |
| DC Trigger Input | 3.5mm 5-15VDC |
| Warranty | 3 years parts and labor |
Signal |
|
| Gain | 30.5dB +/-0.5dB |
| Sensitivity for rated output power | 1.01V |
| Noise | 1kHz@300 Watts < -100dB |
| Input impedance | Unbalanced 50KΩ Balanced 100KΩ |
| Output Impedance | 50Hz, 2.8VRMS <0.007Ω |
| Damping factor | 50Hz. 2.8VRMS 8Ω >1100 4Ω >550 |
| Frequency Response | 2.8VRMS into 4Ω 10Hz – 20KHz +/- 0.5dB 10Hz – 50KHz +0.1/-3.0dB |
THD&IM |
|
| 1KHz, 1W/4Ω | <0.02% |
| 10-20KHz, 1W/4Ω | <0.02% |
| 10-50KHz, 1W/4Ω | < 0.05% (90kHz BW) |
| 1KHz, 37.5W/4Ω | < 0.01% |
Output Power |
Both channels driven 120vac mains, 1kHz, 1% THD |
| 8Ω | 140W minimum |
| 4Ω | 300W minimum |
| 2Ω | Stable for musical transients |
-
