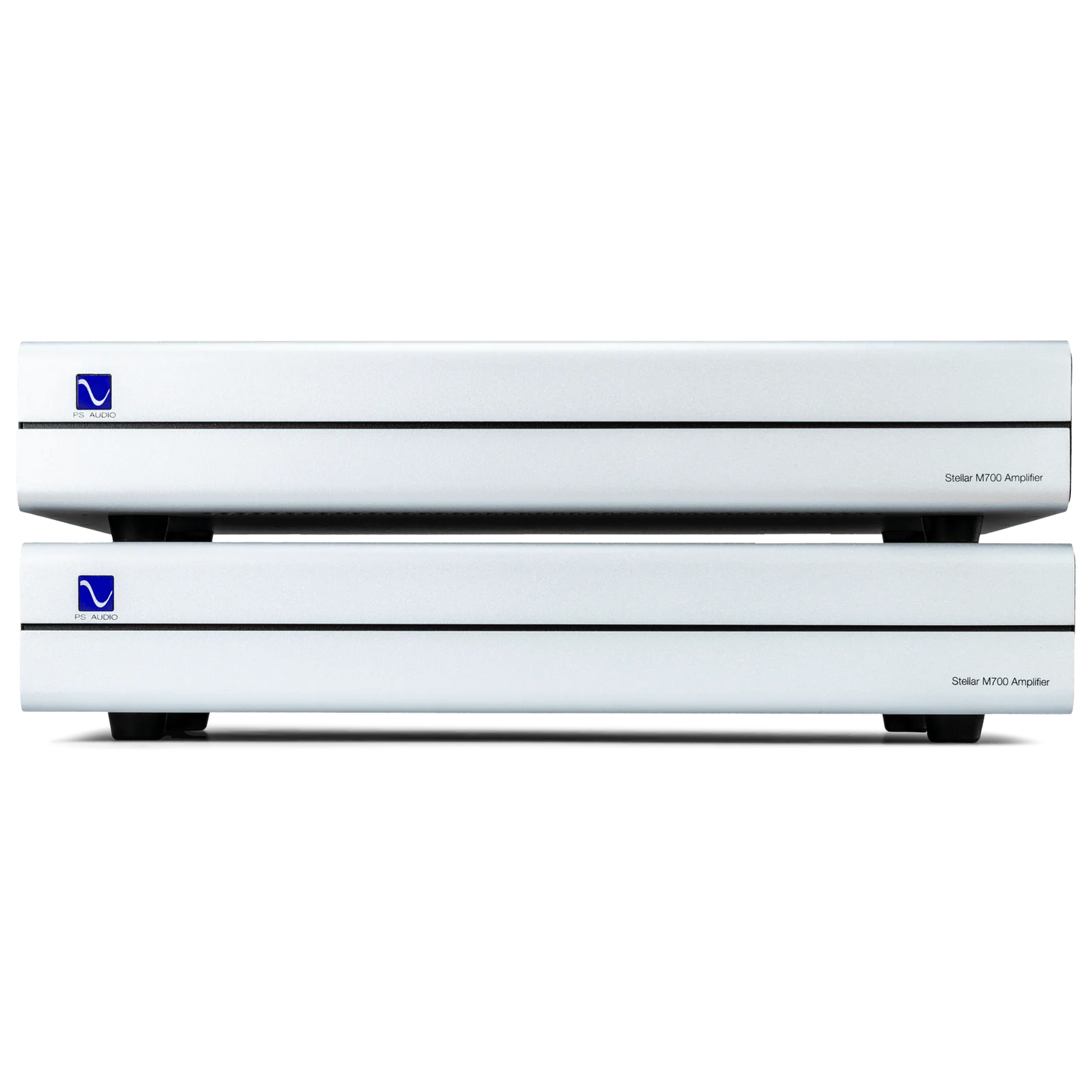

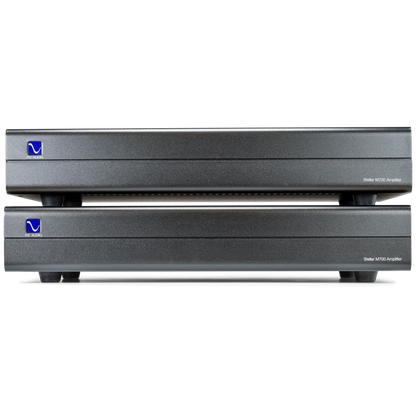

PS Audio Stellar M700 Monoblock Amplifier (Pair)
Couldn't load pickup availability
The Stellar M700 mono amplifiers are a massively powerful engine capable of effortlessly driving demanding loudspeaker loads to concert levels.
Enjoy an unheard of level of control and command from your loudspeakers with the Stellar M700, one of the most extraordinary under $5,000 power amplifier pair ever crafted. With its mighty 700 watt engine connected to any sized loudspeaker, the M700 monoblocks deliver extraordinarily effortless linear headroom that seems to go on forever. Dynamics like you've rarely experienced before. Slam, control, toe-tapping pacing, and music’s subterranean depths are effortlessly delivered to any loudspeaker from the most efficient to the most demanding. Revel in rich layers of fine, full detail you might have been missing before Stellar. Marvel at the deep, extraordinary, wall-to-wall soundstage. Control your loudspeakers as never before. Effortless. Lush. Stellar.
Overview
Rated at 350 Watts into 8Ω and 700 Watts into 4Ω, the M700 combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The Stellar M700 captures the rich, full-bodied essence of recorded music and presents it to your loudspeakers with authority and grace, never a hint of glare or unnaturalness. The M700 is faithful to the music like few amplifiers are. Listeners are constantly surprised at the width and depth of the M700's soundstage; its preservation of the smallest details in reverb, room acoustics, and musical overtones; its commanding presence without intrusion; its delicate handling of subtle shadings; its authority as it grabs hold of the loudspeaker and breezes through even the most complex musical passages.
| Unit Weight | 13 lbs [5.9 kg] (each) |

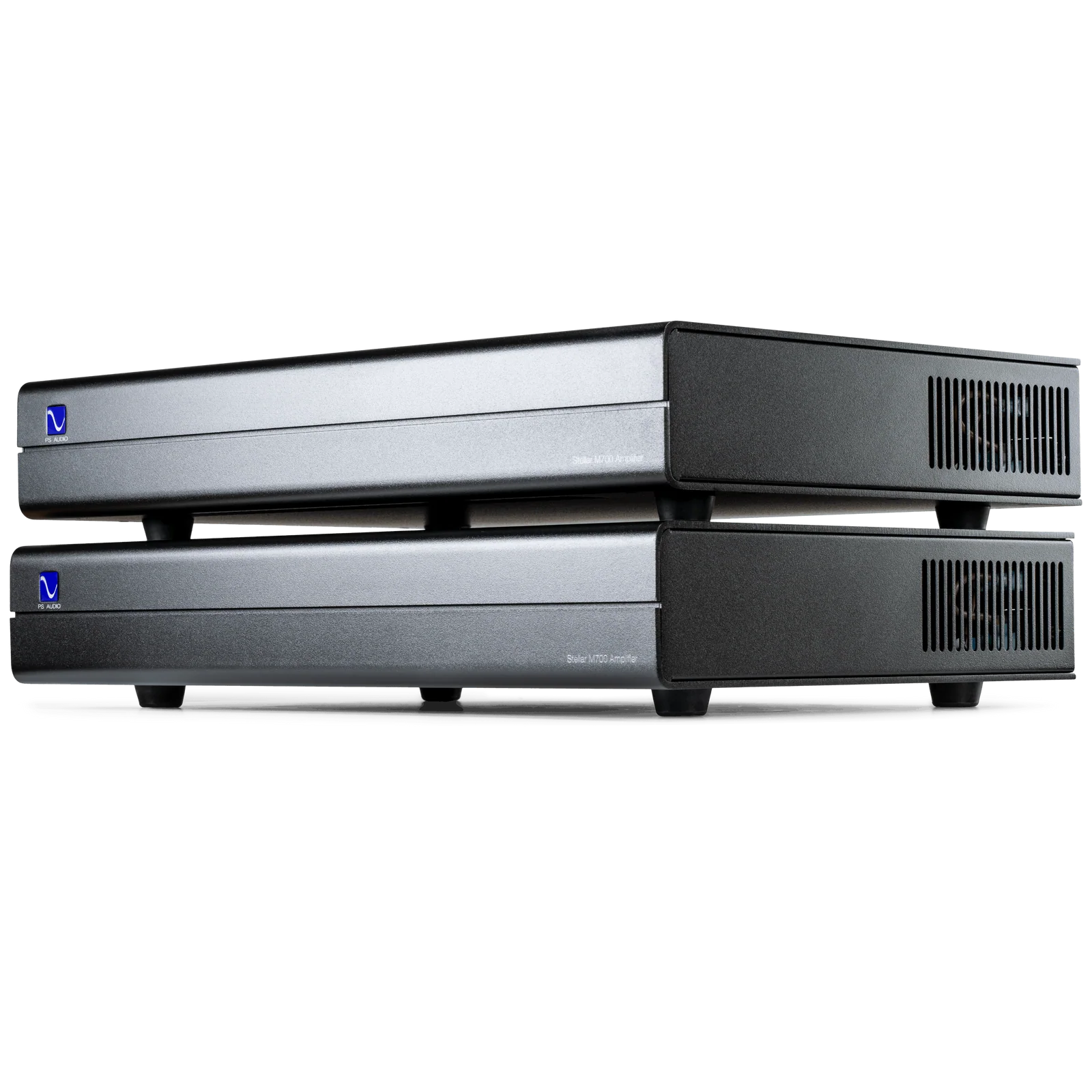

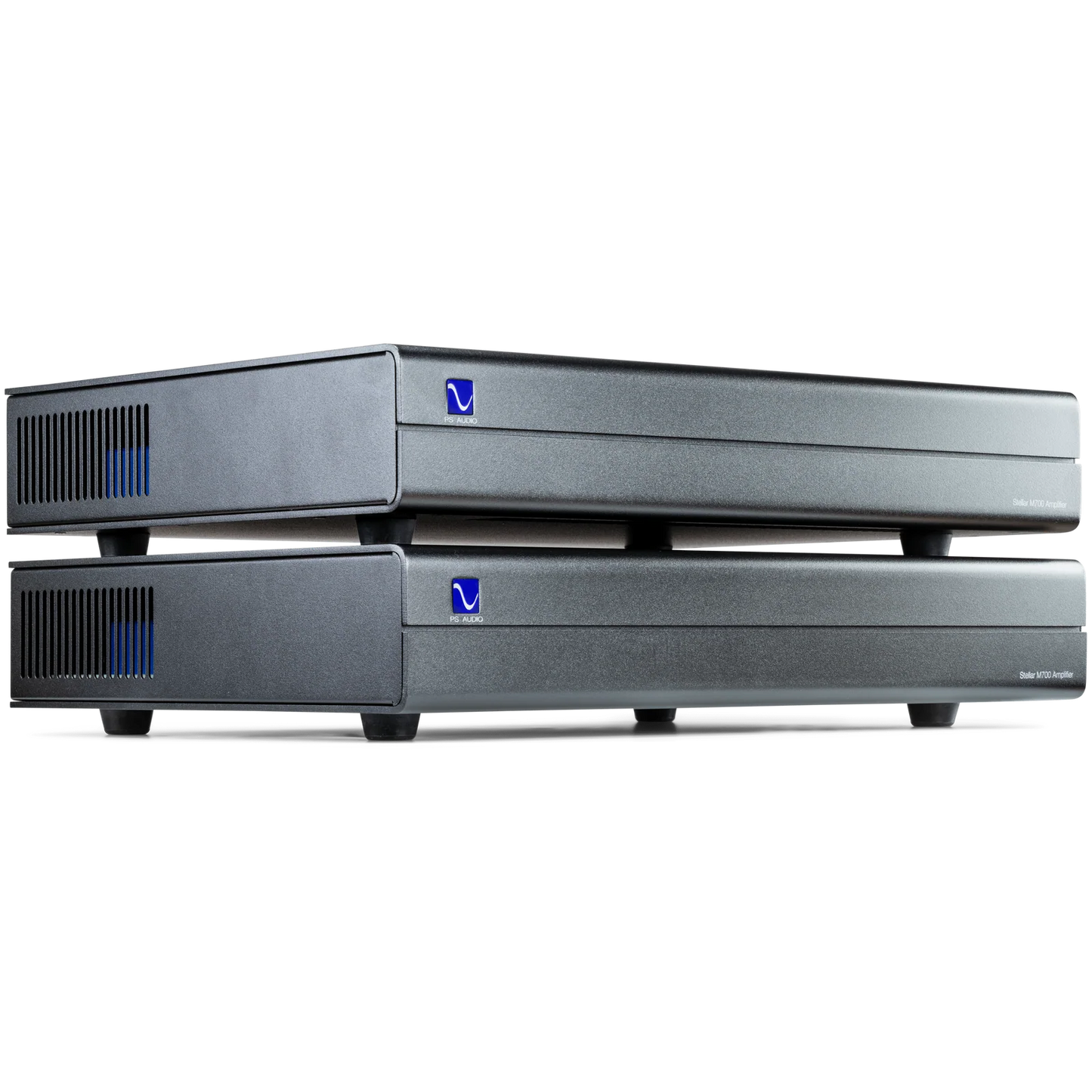

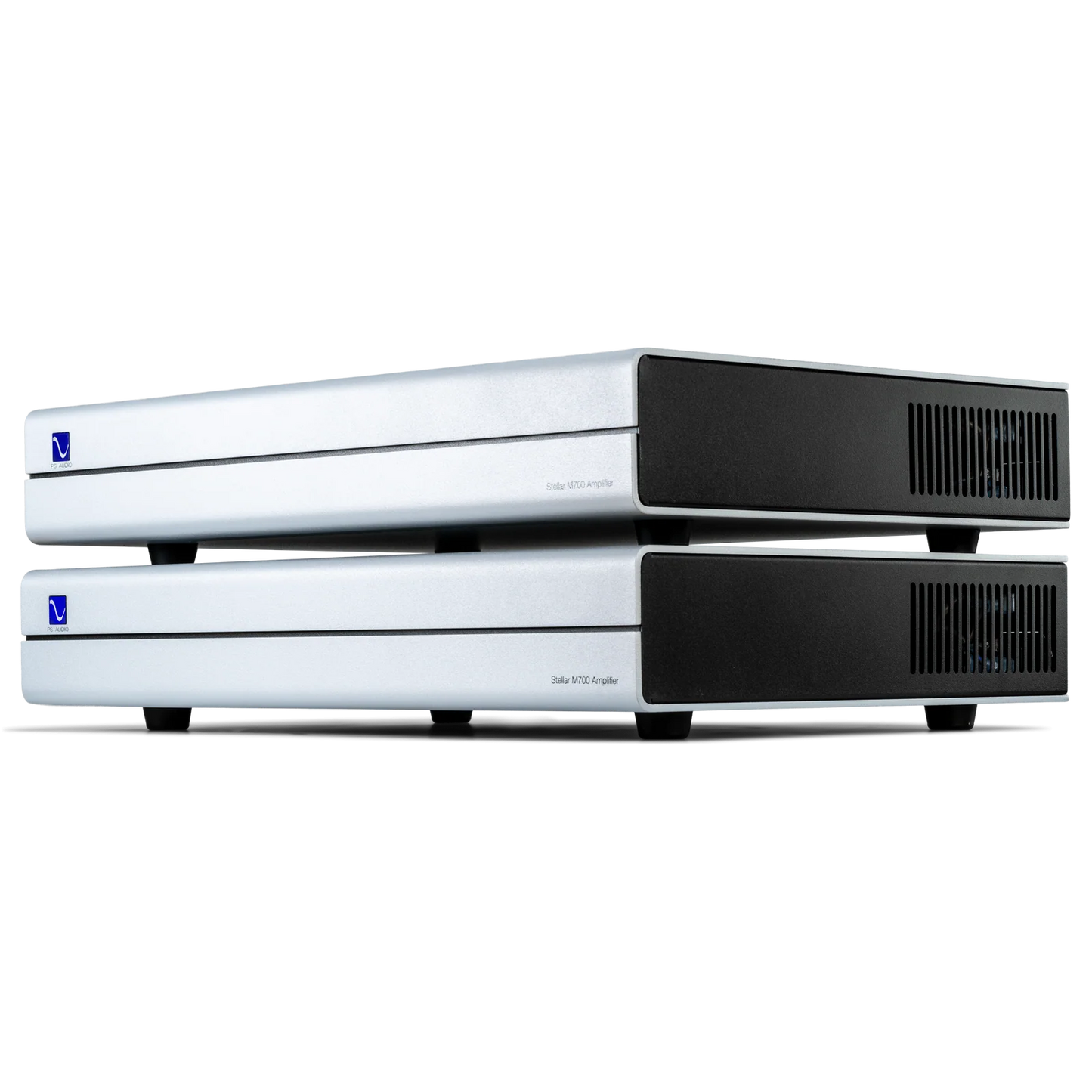

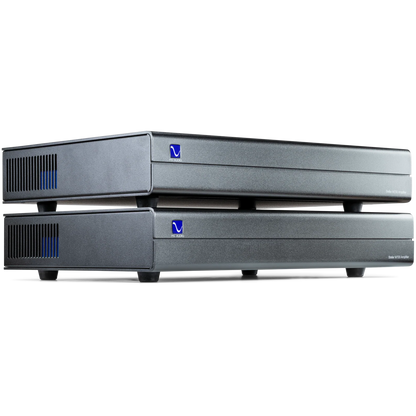

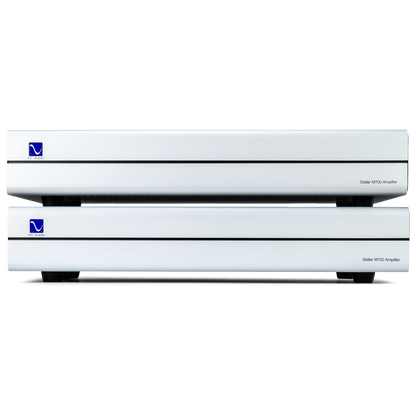

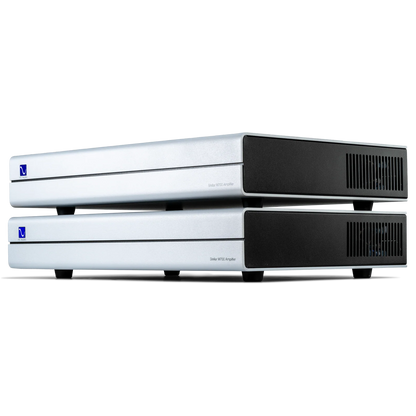

| Unit Dimensions | 17”W x 3”H x 12”D (13"D w/connectors) 17”W x 6”H x 12”D (Stacked) |
| Shipping Weight | 16.5 lbs [7.5 kg] (each) |
| Shipping Dimensions | 22”W x 8”H x 17”D (each) |

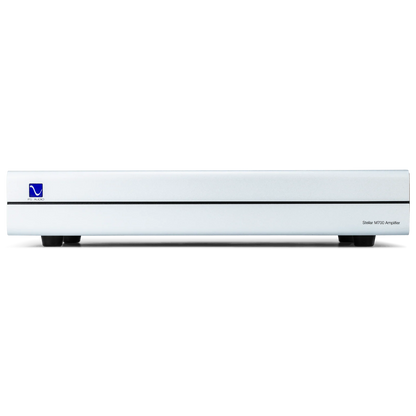

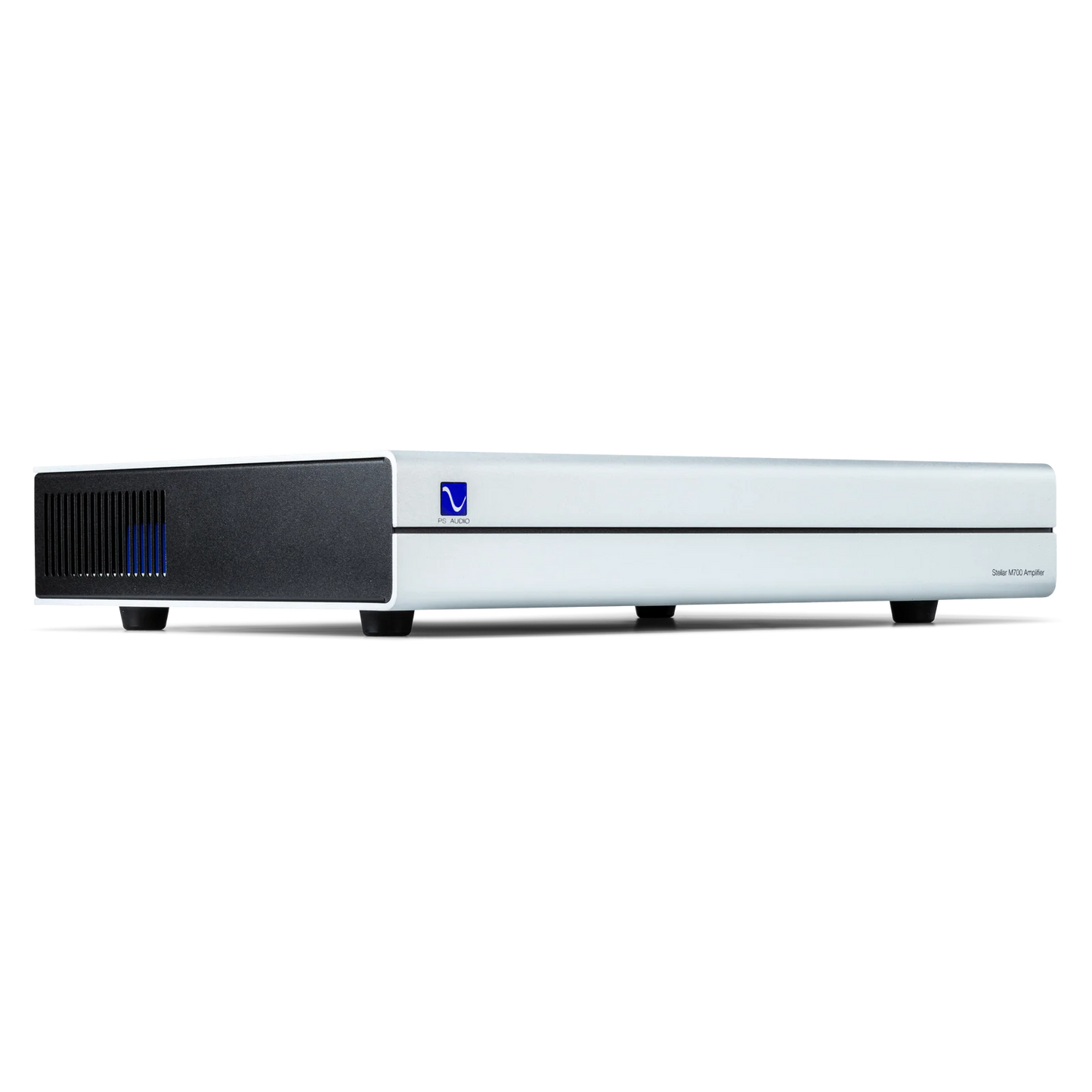

| Color Options | Black Silver |
| Voltage Options (Factory set only) |
Japan 100V North America 120V Europe/Asia/Australia/New Zealand 230V |

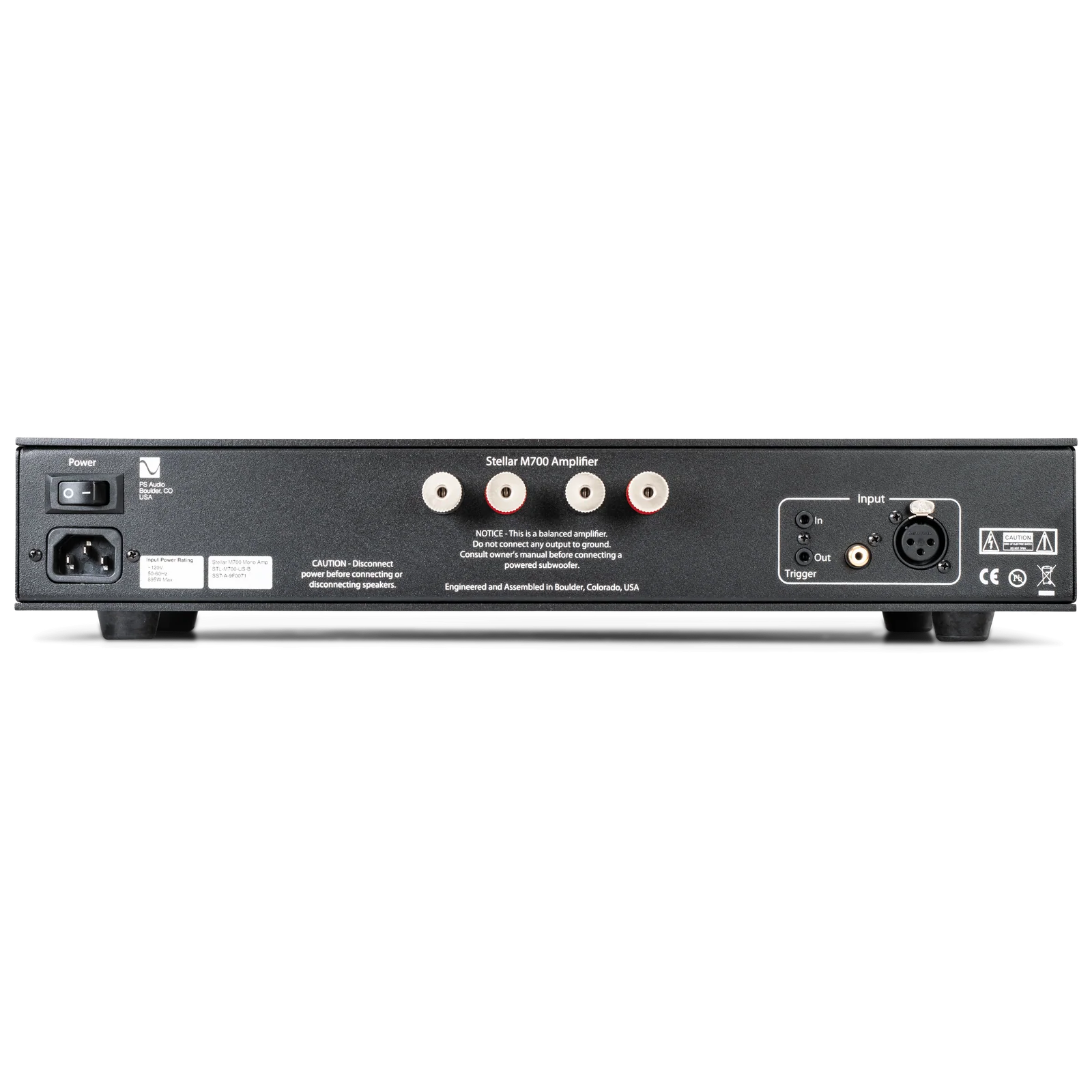

| Mains Power Inputs | IEC C14 |
| Idle Power Consumption | 23W |
| Accessories Included | US (NEMA 5-15P) (all versions) Schuko (CEE7/7) (230V version) UK (BS 1363) (230V version) |

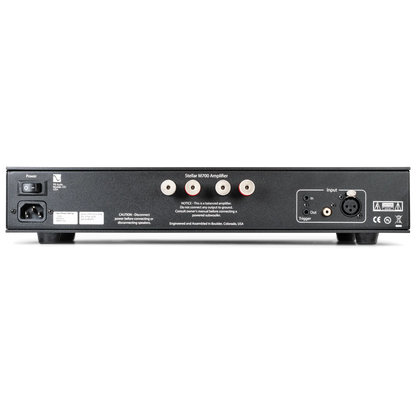

| Audio Inputs | RCA (Unbalanced) XLR (Balanced) |
| Speaker Outputs | Copper base nickel plated binding posts (2 pair) |
| DC Trigger Input | 3.5mm 5-15VDC |
| Warranty | 3 years parts and labor |
Signal |
|
| Gain | 30.5dB +/-0.5dB |
| Sensitivity for rated output power | 1.6V |
| Noise | 1kHz@700 Watts < -105dB |
| Input impedance | Unbalanced 50KΩ Balanced 100KΩ |
| Output Impedance | 50Hz, 2.8VRMS <0.007Ω |
| Damping factor | 50Hz. 2.8VRMS 8Ω >1100 4Ω >550 |
| Frequency Response | 2.8VRMS into 4Ω 10Hz – 20KHz +/- 0.5dB 10Hz – 50KHz +0.1/-3.0dB |
THD&IM |
|
| 1KHz, 1W/4Ω | <0.02% |
| 10-20KHz, 1W/4Ω | <0.02% |
| 10-50KHz, 1W/4Ω | < 0.05% (90kHz BW) |
| 1KHz, 87.5W/4Ω | < 0.015% |
Output Power |
120vac mains, 1kHz, 1% THD |
| 8Ω | 350W minimum |
| 4Ω | 700W minimum |
| 2Ω | Stable for musical transients |
-
Vendor:
PS Audio
-
Type:
Power Amplifiers
- Tags: Amplifier, M700, Monoblock amplifier, Power amplifier, Ps audio, Stellar
