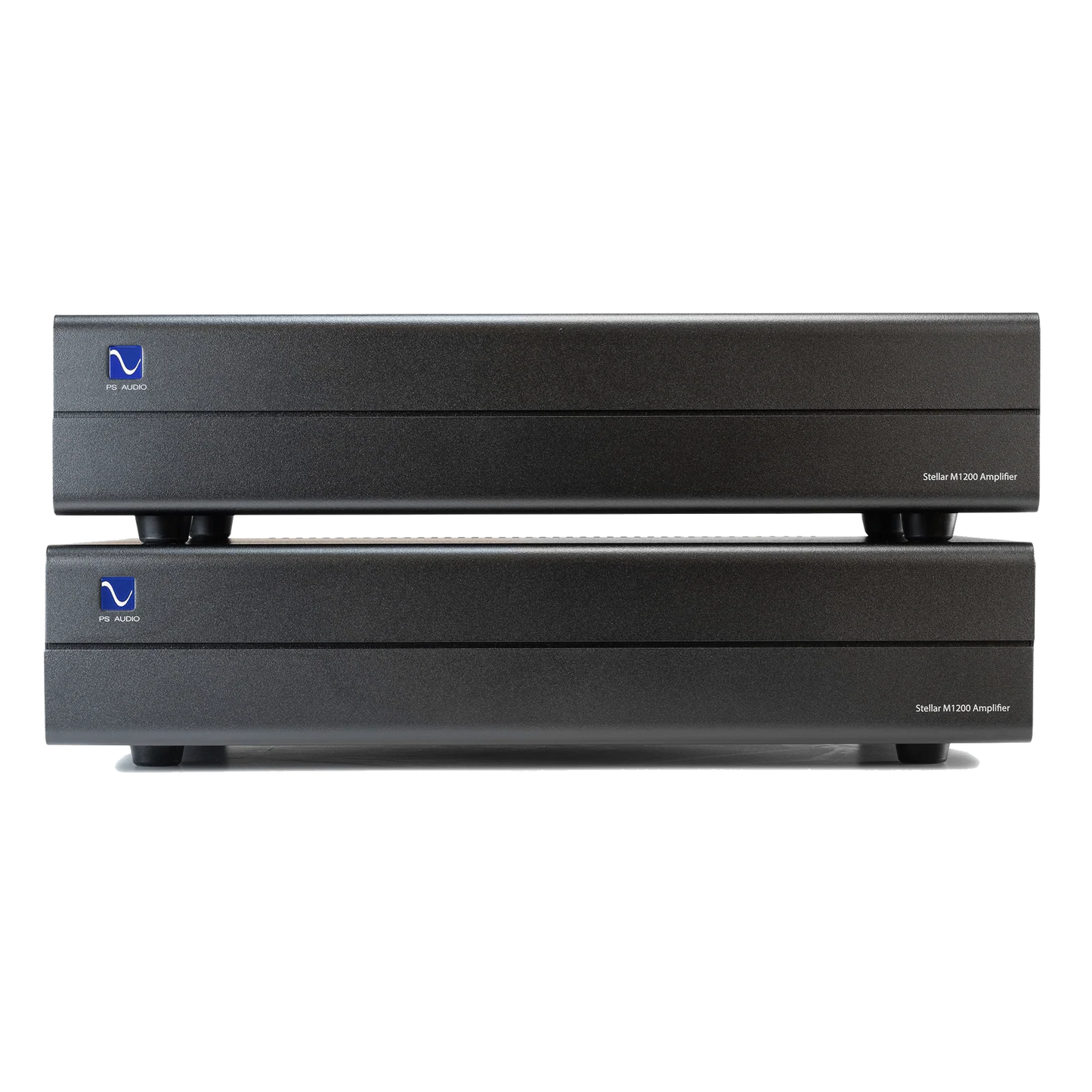

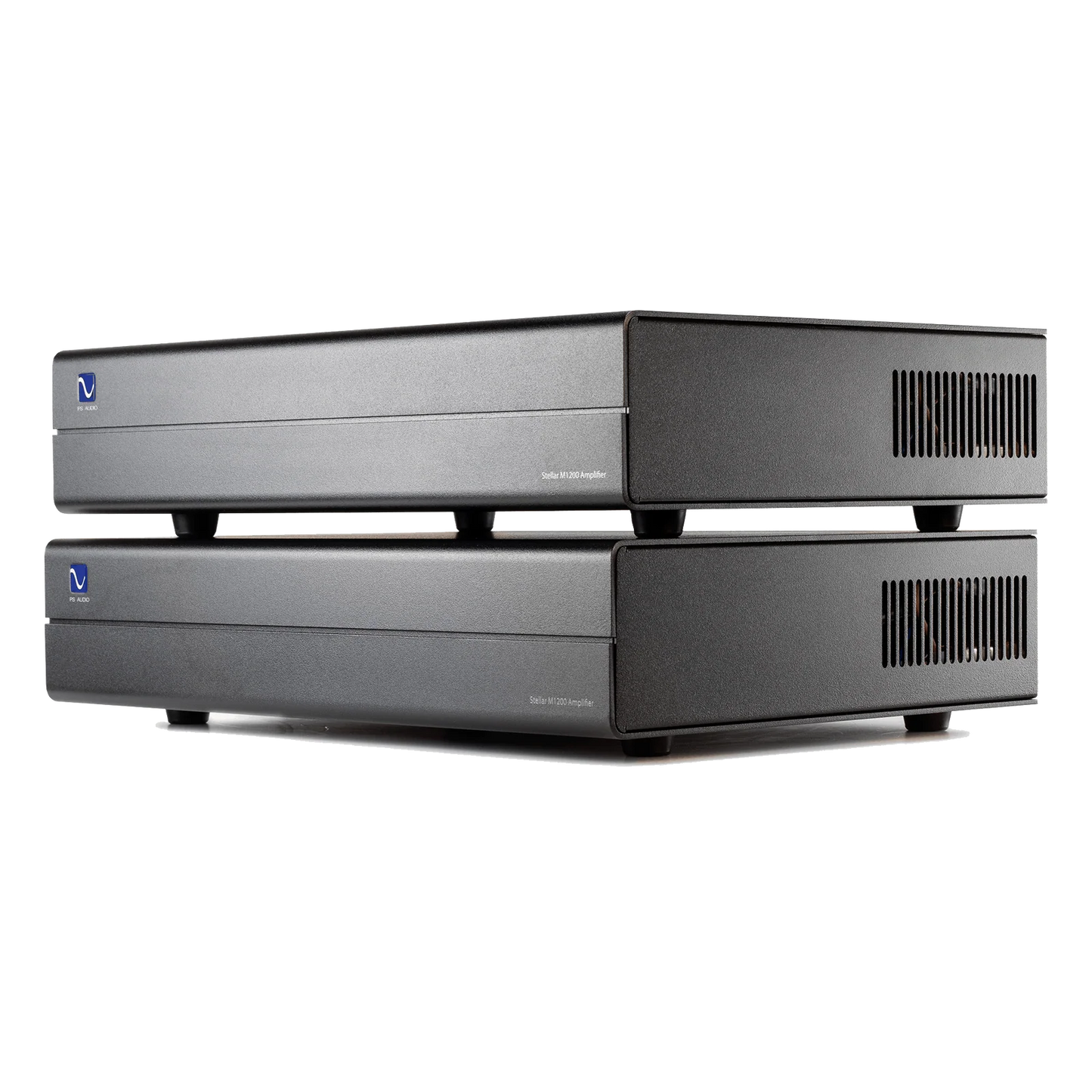

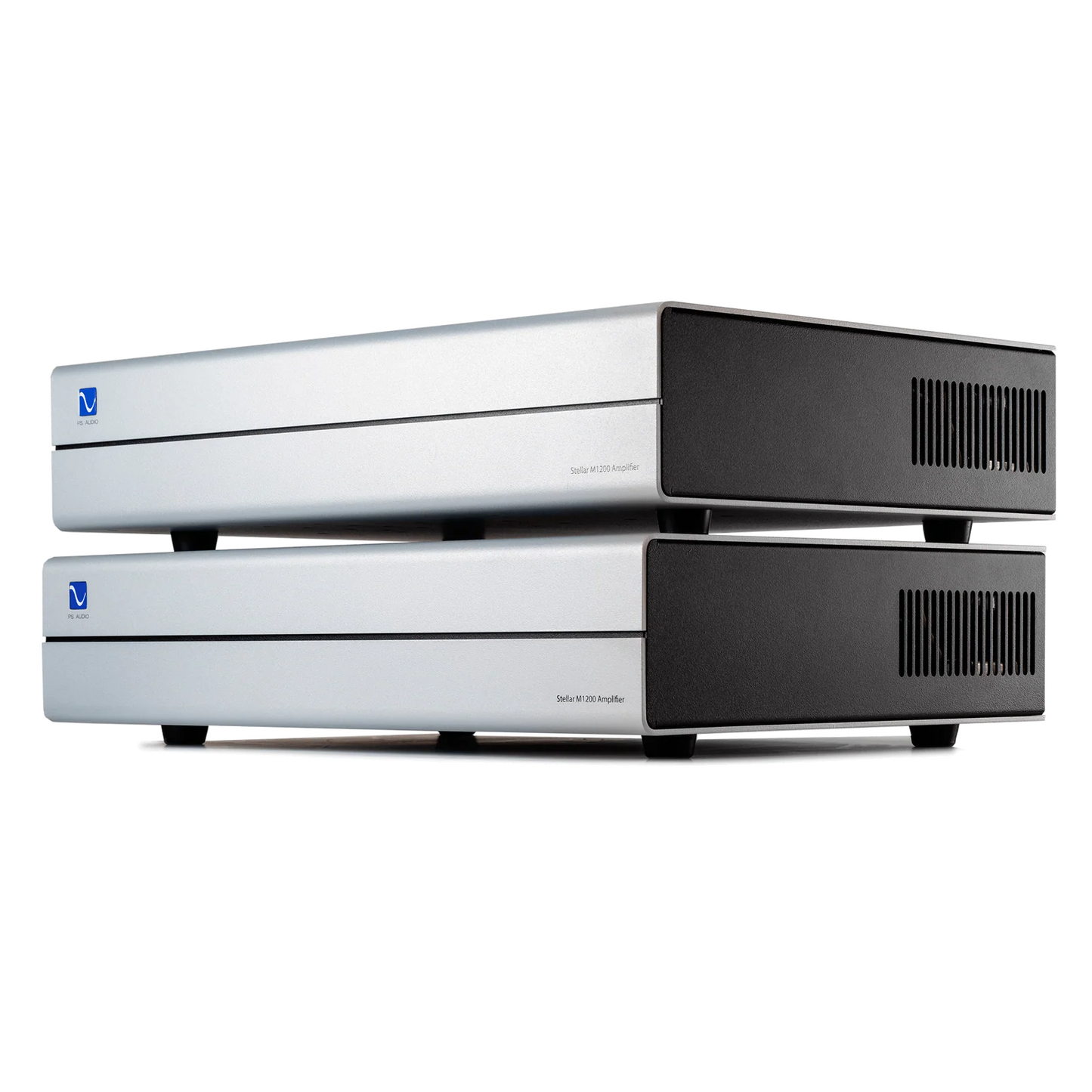

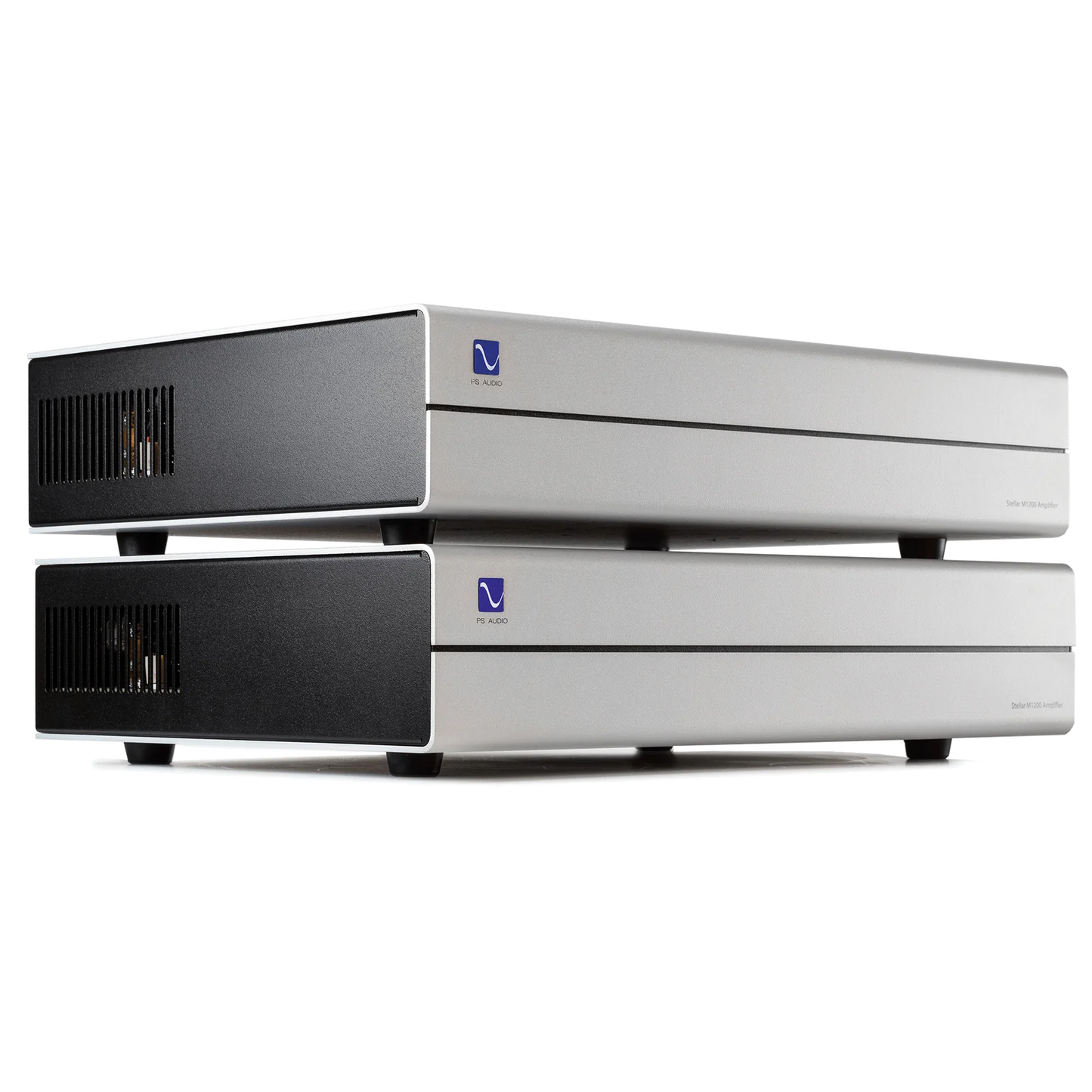

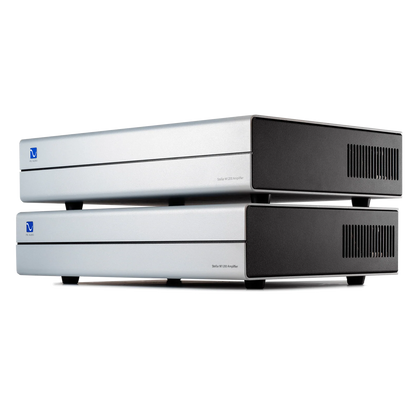

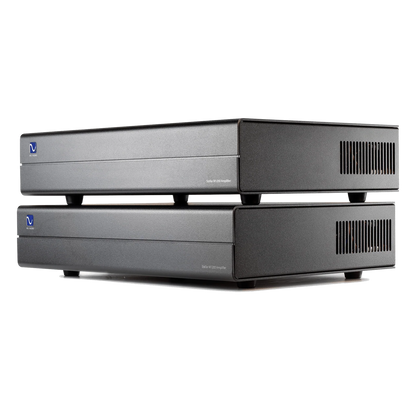

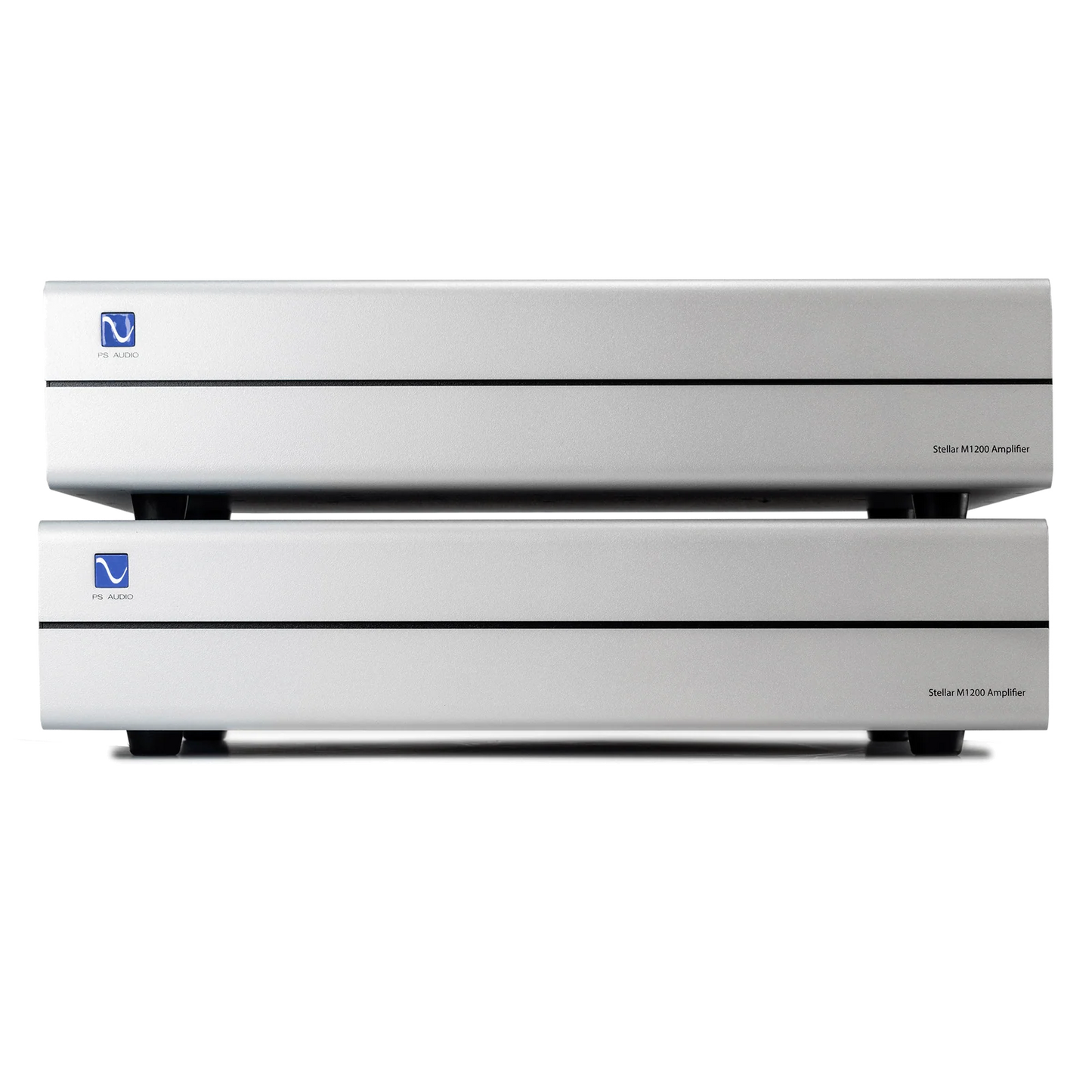

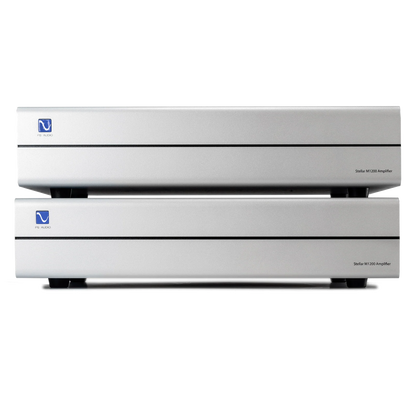

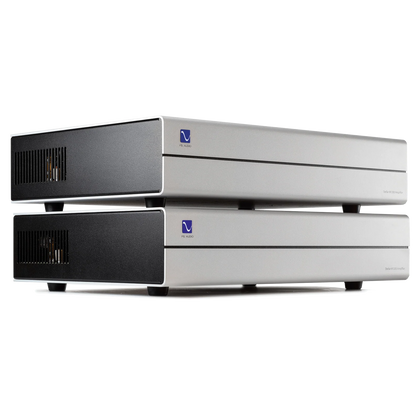

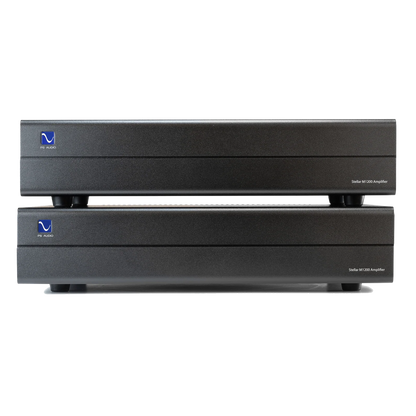

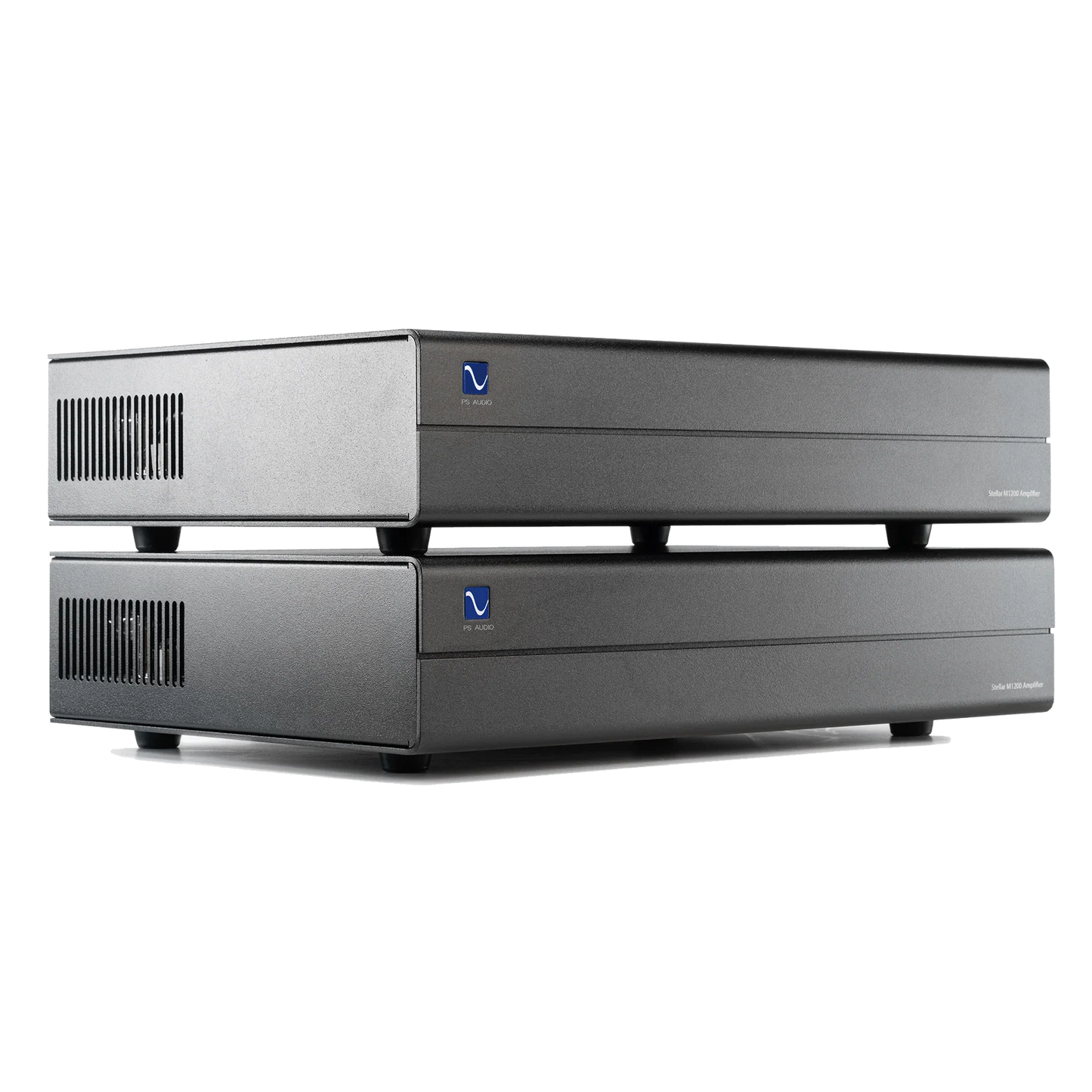

PS Audio Stellar M1200 Monoblock Amplifiers (Pair)

Regular price $8,499.00
Sale price $8,499.00 Regular price
Sale Sold out
Shipping calculated at checkout.
Color: Silver

M1200 Amplifier Pair

The Stellar M1200 mono amplifiers are a high power super linear amplifier with a vacuum tube input providing uncompressed performance.

The Stellar M1200 monoblock power amplifier combines the rich warmth and musicality of vacuum tubes with the jaw-dropping power and seemingly infinite headroom of a 1200 watt high-performance output stage. This extraordinary hybrid amplifier knows no limits. From the subtlest musical whisperings to the loudest crescendos an orchestra or rock band is capable of, Stellar M1200 never flinches. Regardless of your speaker’s power demands or limitations, enjoy the once unachievable uncompressed effortlessness afforded by this design. Pure musical bliss for any loudspeaker made, from the smallest to the biggest. Stellar.

Overview

The Stellar M1200 mono amplifiers solve a classic problem with nearly every power amplifier made: sonic compression. When the orchestra gets loud and complex, or the band really starts to rock it out, most power amplifiers get out of their comfort zone and we hear their stress and strain as compression. The M1200 was designed to play any music into any loudspeaker with zero compression. Rated at 600 Watts into 8Ω and a whopping 1200 Watts into 4Ω, the M1200 combines the best of two worlds: ultra-linear, high-current, ICE Edge Class D technology for the output stage; and a discrete, Class-A vacuum tube for the all-important input stage. The M1200’s rich, warm, and beautifully nuanced reproduction of music comes first from the zero feedback, class A vacuum tube input stage. Here nothing is lost in its hand-selected 12AU7 vacuum tube, fed from its own analog power supply.

Unit Weight 27 lbs [12.2 kg] (each)
Unit Dimensions 17”W x 3.75”H x 12”D (13"D w/connectors)
17”W x 7.5”H x 12”D (Stacked)
Shipping Weight 29 lbs [13.15 kg] (each)
Shipping Dimensions 22”W x 8”H x 17”D (each)
Color Options Black
Silver
Vacuum tube type 12AU7
Voltage Options
(Factory set only)
Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V

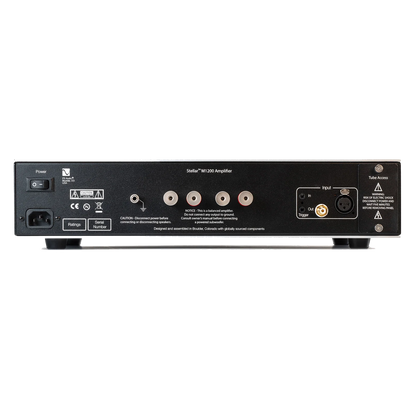

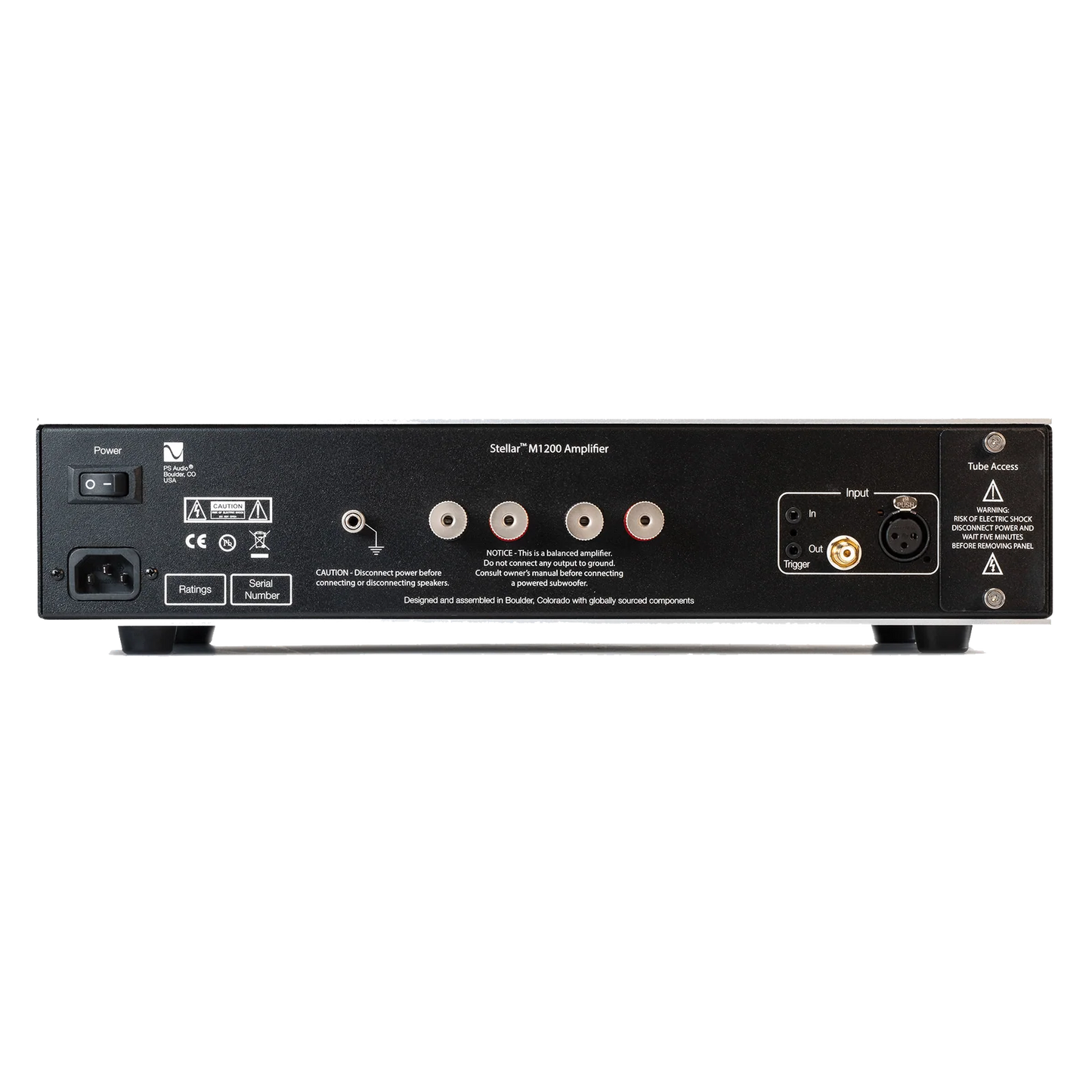

Mains Power Inputs IEC C14
Idle Power Consumption 27W
Power Factor >0.9 @ rated power 4Ω
Accessories Included US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)

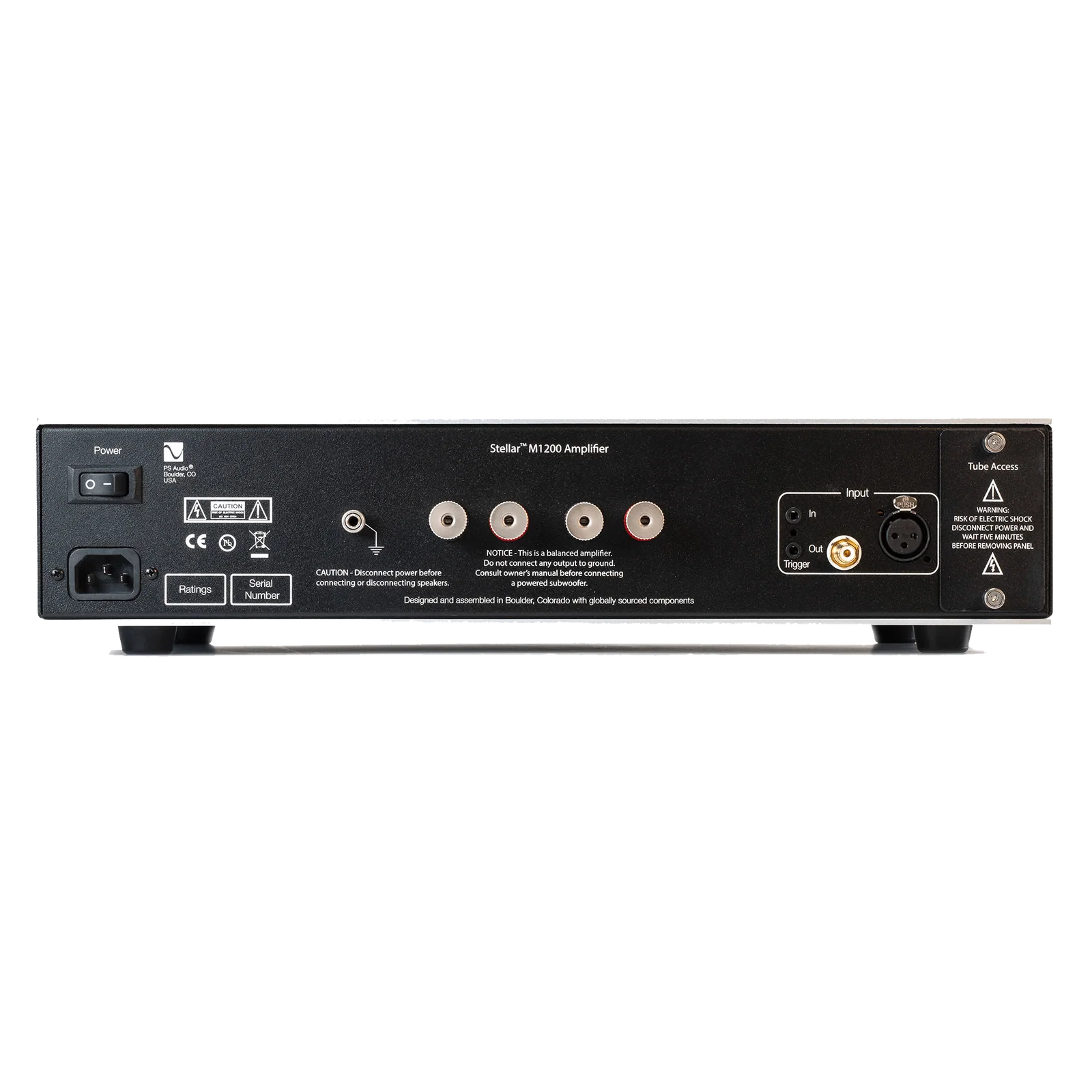

Audio Inputs RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs Copper base nickel plated binding posts (2 pair)
DC Trigger Input 3.5mm 5-15VDC
Warranty 3 years parts and labor

Signal

Gain 30.5dB +/-0.5dB
Sensitivity for rated output power 2.08V
Signal to Noise 1kHz@1200 Watts > 112dB
Input impedance Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance 50Hz, 2.8VRMS <0.007Ω
Damping factor 50Hz. 2.8VRMS
8Ω >1100
4Ω >550
Frequency Response 2.8VRMS into 4Ω
10Hz – 20KHz +/- 0.5dB
10Hz – 45KHz +0.1/-3.0dB

THD & IM

1KHz, 1W/4Ω < 0.005%
10-20KHz, 1W/4Ω < 0.01%
1KHz, 150W/4Ω < 0.02%

Output Power

120vac mains, 1kHz, 1% THD
8Ω 600W minimum
4Ω 1200W minimum
2Ω Stable for musical transients
