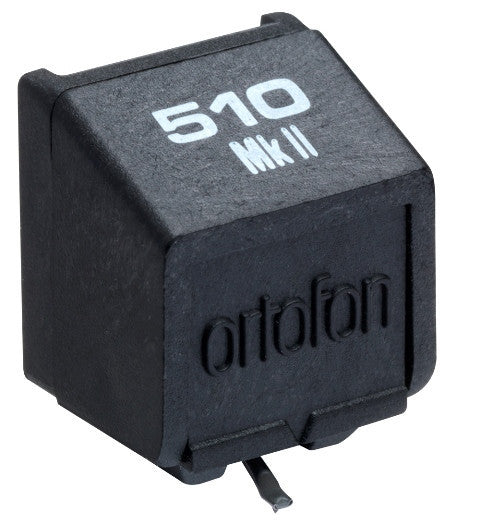

Ortofon 510 Mk II Replacement Stylus

The Ortofon Stylus 510 MKII stylus is the standard stylus replacement for the Ortofon 510 MKII phono cartridge.

Ortofon 510 Mk II Stylus Technical Data:

• Frequency range 20-23.000 Hz
• Frequency response 20-20.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force 70 µm
• Compliance, dynamic, lateral 25 µm/mN
• Stylus type Elliptical
• Stylus tip radius r/R 8/18 µm
• Equivalent stylus tip mass 0,3 mg
• Tracking force range 1.25-1.75 g (12,5-17,5 mN)
• Tracking force, recommended 1.5 g (15 mN)
• Tracking angle 20°
• Stylus colour Black
