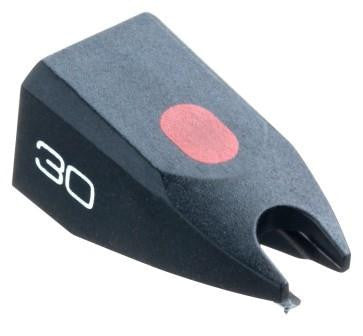

Ortofon 30 Replacement Stylus

Stylus upgrades can make a huge difference in sound quality. No where is it more apparent than in the Ortofon line. For folks using a Super OM cartridge, the 20, 30, and 40 stylus options are a perfect way to take the sound to the next level. Details on the diamonds below:

20: Nude Elliptical
30: Nude Fine Line
40: Nude FG

Ortofon 30 Stylus Technical Data:

• Frequency range 20-29.000 Hz
• Frequency response 20-20.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force 90 µm
• Compliance, dynamic, lateral 25 µm/mN
• Stylus type Nude Fine Line
• Stylus tip radius r/R 8/40 µm
• Equivalent stylus tip mass 0,3 mg
• Tracking force range 1,25-1,75 g (12,5-17,5 mN)
• Tracking force, recommended 1,5 g (15 mN)
• Tracking angle 20°
• Stylus colour Black
• Recommended for the following cartridges:  Super OM 30. OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30, LM 30H, TM 30H.
