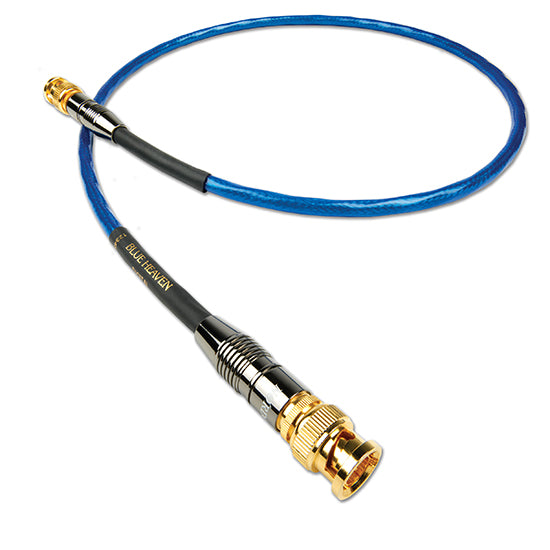

Nordost Blue Heaven 2 - 1M 75 Ohm Digital interconnect - On Sale

On Sale for $229.99 - Regular Price - $317.99

1 Only Available

The safe transfer of digital data streams depends on achieving accurate impedance within the transmission chain. The S/PDIF transmission standard dictates a 75 Ohm co-axial lead, but it is surprising how few cables meet that specification.

The Blue Heaven Digital Interconnect is a true 75 Ohm conductor. Employing a Micro Mono-Filament, co-axial construction. This advanced topology allows us to achieve superior electrical performance and geometrical accuracy, irrespective of cable length. The Blue Heaven Digital Interconnect ensures high-speed, low-loss characteristics and, due to its BNC termination, the 75 Ohm standard is maintained, even across the connectors. Each BNC connector is supplied with a gold-plated RCA adaptor, keeping the cable consistent in performance across any combination of co-axial inputs or outputs. To accommodate even more applications, this cable is also available in a BNC to 3.5mm mono mini configuration.

Specifications:

Insulation:  Fluorinated Ethylene Propylene (FEP)
Construction:  Mechanically tuned spacing, Micro Mono-Filament, co-axial design
Conductors:   1 x 24 AWG
Material:  Silver-plated 99.9999% solid core OFC
Capacitance:  16pF/ft
Impedance:  75 Ohm
Overall Shield Coverage:  95%
Velocity of Propagation:  85%
