Dynavector DV XX-2A Moving Coil Phono Cartridge

Experience audio perfection with the Dynavector XX-2A cartridge, a pinnacle of high-end audio engineering. Since 1978, Dynavector has been synonymous with excellence, crafting high-performance cartridges that redefine sound quality. Our commitment to academic engineering theory ensures that every cartridge we create is a masterpiece of precision and innovation.

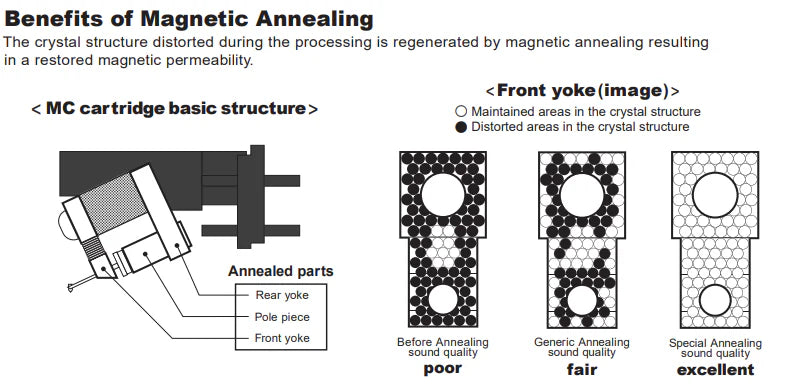

At the heart of the XX-2A cartridge is our unique magnetic circuit, meticulously designed and refined to perfection. Utilizing pure iron, known for its high magnetic permeability and stability, our cartridges deliver a distortion-free output that is unparalleled. Through advanced magnetic annealing techniques, we have optimized the magnetic properties of our cartridges, unlocking their full potential and providing you with a listening experience like never before.

The result is a cartridge that offers top-notch resolution, smooth wide-range expression, and an expansive sound field that immerses you in the music. Whether you're a casual listener or a dedicated audiophile, the Dynavector XX-2A cartridge will elevate your listening experience to new heights. Treat yourself to true audio perfection and discover the harmony of sound with the Dynavector XX-2A cartridge.

Specifications:

• Stylus:  PF Line contact shape, stylus radius: 7 x 30 micron
• Cantilever:  6mm length 0.3 mm dia. solid boron
• Output Voltage:  0.28mV (at 1KHz, 5cm/sec.)
• Channel Separation:  30 dB (at 1KHz)
• Channel balance:  1.0 dB (at 1KHz)
• Frequency response:  20 – 20,000Hz (± 1dB)
• Compliance:  10 x 10-6 cm/dyn
• Tracking force:  1.8 – 2.2 grams
• Impedance:  R=6 ohms
• Recommended load resistance:  > 30 ohms
• Weight:  8.9 grams
• Type:  Low output moving coil cartridge with Alnico magnet and Flux damper
