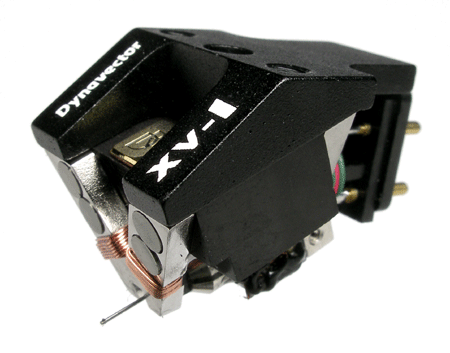

Dynavector DV DRT XV-1s Mono Moving Coil Phono Cartridge

The new Dynavector XV-1s mono cartridge has been developed due to enthusiastic requests from mono record lovers, worldwide. The XV-1s mono has not been designed as a typical, old fashioned mono cartridge, but developed as a true high fidelity component. It is designed to provide the highest performance and extract the greatest musical expression possible from mono records. The XV-1s mono follows from the innovative design and technology of the acclaimed XV-1s stereo cartridge.

Specifications:

• Type:  Low output moving coil mono cartridge with multi Alnico magnets and the Flux damper
• Output Voltage:  0.25mV (at 1KHz, 5cm/sec. RMS horizontal)
• Frequency Response:  20 - 50,000Hz (± 1dB)
• Compliance:  6 mm/N (horizontal)
• Tracking Force:  2.6 - 3.2 g
• Impedance:  7 ohms
• Recommended Load Impedance:  > 30 ohms
• Cantilever:  6mm length 0.3 mm dia. solid boron
• Stylus Tip:  PF Line contact shape, stylus radius: 7 x 30 micron
• Weight:  12.6 g
