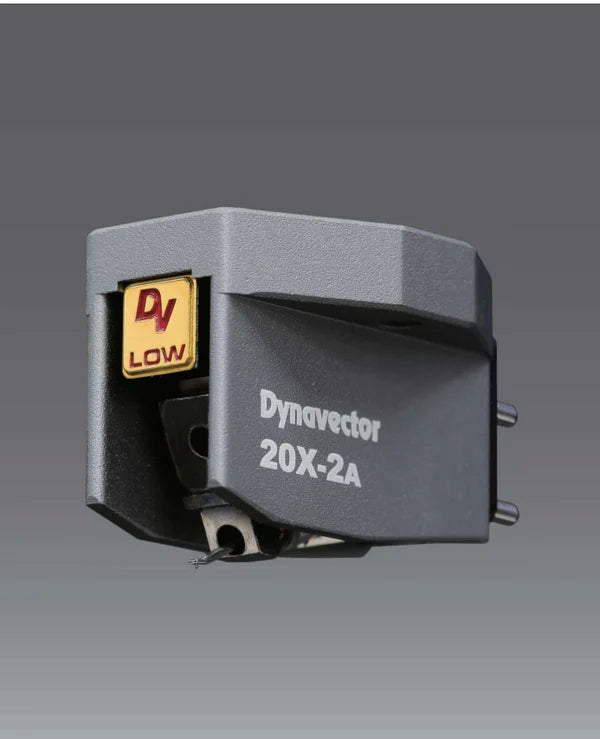

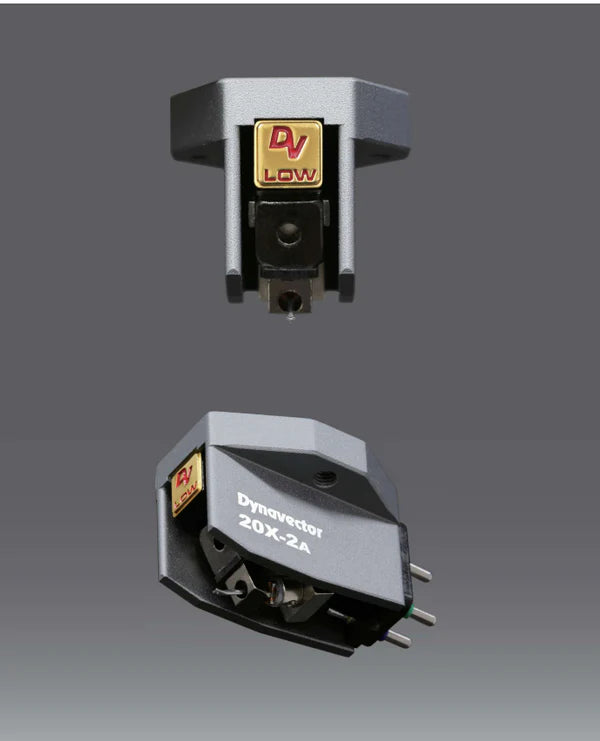

Dynavector DV 20X2A High or Low Output Moving Coil Phono Cartridges

For more than 35 years Dynavector have established an enviable reputation for producing affordable high quality moving coil cartridges. Notably high output models that are designed to work with MM inputs negating the necessity for equipment change or the use of setup devices required for low output cartridges. The outstanding performance of the Dynavector high output moving coil cartridges can be attributed to the exclusively Dynavector designed coil winding machine capable of utilizing extremely fine coil wire providing a high output to mass ratio.

Principle Improvements for the DV 20X2A:

The DV 20X2A phono cartridge is a basic model of the Dynavector MC cartridge series. Using the same base structure as our higher-end models XX-2A and Te Kaitora Rua, it has a solid aluminium alloy body, hard aluminium cantilever and a Micro-Ridge stylus tip.

This DV 20X2A phono cartridge has 2 types for you to choose from according to your system.

The 20X2A-L (low output model) has the output as a regular MC cartridge while the 20X2A-H (high output model) is an MC cartridge that suitable for the most MM input.

Special Annealing Magnetic Circuit:

The magnetic circuit, which is the core of an MC cartridge, uses pure iron that has stable magnetic properties with minimal distortion. Furthermore, by performing special annealing that focuses on optimizing the magnetic annealing process such as annealing temperature, environment, heating duration, and heating / cooling rates, we have succeeded in delivering expansive resonant sound without distortion and unrivaled resolution.

Specifications:

• Stylus: Micro Ridge Nude diamond
• Cantilever: 6mm length hard aluminum pipe
• Output voltage: 2.8mV / 0.3mV (at 1KHz, 5cm/sec.)
• Frequency response: 20 – 20,000Hz (±2dB)
• Channel Separation: 25 dB (at 1KHz)
• Channel balance: 1.0 dB (at 1KHz)
• Compliance: 12 x 10-6 cm/dyne
• Impedance: R=150 ohms / 5 ohms
• Tracking force: 1.8 – 2.2 grams
• Recommended load impedance: >1000 ohms / >30 ohms
• Weight: 9.2grams
• Type: High/Low output MC cartridge with Flux damper and Softened magnetism
