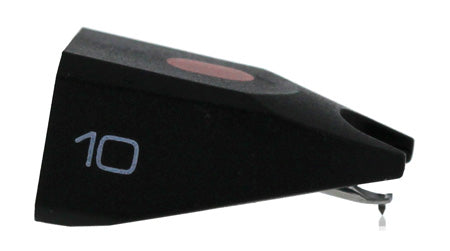

Ortofon Stylus 10 Replacement Stylus

The Ortofon Stylus 10 needle stylus is the standard replacement stylus for the Ortofon OM-10 OM10 phono cartridge and its older siblings. The stylus features a 0.3 x 0.7 mil diamond tip.

Specifications:

• Frequency range: 20-24kHz
• Frequency response: 20-20kHz +3/-1dB
• FIM distortion at recommended tracking force, DIN 45.542: < 1%
• Tracking ability @ 315Hz @ recommended tracking force: 70µm
• Compliance, dynamic, lateral: 25µm/mN
• Stylus type: Elliptical
• Stylus tip radius: 0.3 x 0.7 mil
• Tracking force range: 1.25-1.75g (12.5-17.5mN)
• Tracking force, recommended: 1.5g (15mN)
