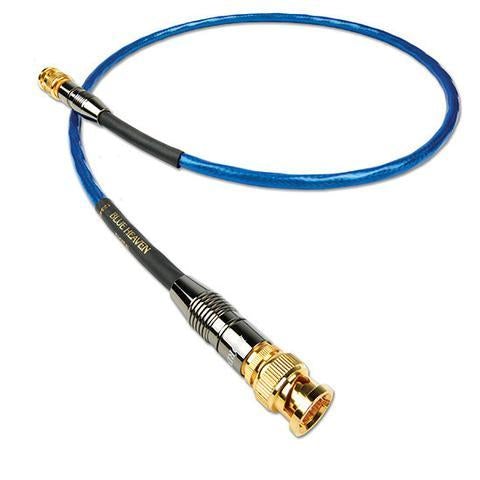

Nordost Leif Series Blue Heaven Digital Cable 75 Ohm

The safe transfer of digital data streams depends on achieving accurate impedance within the transmission chain. The S/PDIF transmission standard dictates a 75 Ohm co-axial lead, but it is surprising how few cables meet that specification.

The Blue Heaven Digital Interconnect is a true 75 Ohm conductor. Employing a Micro Mono-Filament, co-axial construction. This advanced topology allows us to achieve superior electrical performance and geometrical accuracy, irrespective of cable length. The Blue Heaven Digital Interconnect ensures high-speed, low-loss characteristics and, due to its BNC termination, the 75 Ohm standard is maintained, even across the connectors. Each BNC connector is supplied with a gold-plated RCA adaptor, keeping the cable consistent in performance across any combination of co-axial inputs or outputs.

Specifications

• Insulation:  Fluorinated Ethylene Propylene (FEP)
• Construction:  Mechanically tuned spacing, Micro Mono-Filament, co-axial design
• Conductors:  1 x 24 AWG
• Material:  Silver-plated 99.9999% solid core OFC
• Capacitance:  16pF/ft
• Impedance:  75 Ohm
• Overall Shield Coverage:  95%
• Velocity of Propagation:  85%
• Termination:   Gold-plated true 75 Ohm BNC to Gold-plated true 75 Ohm BNC or Gold-plated 3.5mm mono mini (Gold-plated BNC to RCA adapters included)

To accommodate even more applications, this cable is also available in a BNC to 3.5mm mono mini configuration. Please see ordering options.

Available in 1m, 1.5m, 2m, 2.5m, 3m, 3.5m & 4m Lengths.  Please add $40.00 per additional 1/2 meter - call us to special order.
