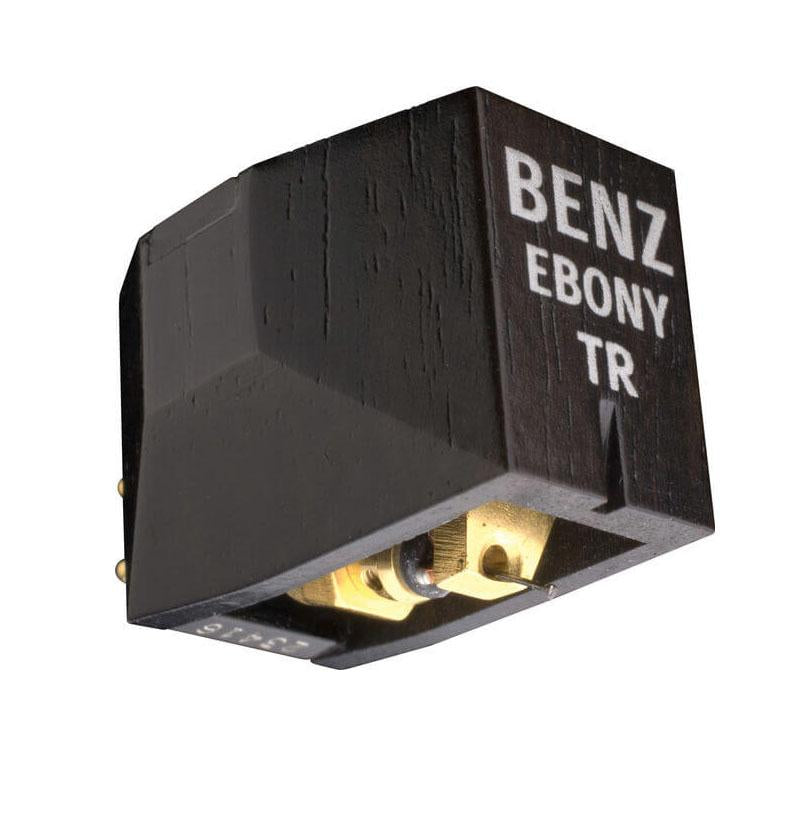

Benz Micro Ebony TR Moving Coil Phono Cartridge

The Benz Ebony series are designer Albert Lukaschek’s ultimate realization of his cross-coil generator based cartridges. Each cartridge uses the best materials, such as Ebony wood body, Micro Ridge stylus and the most advanced coil windings for their application. The Ebony H (2.5mV at 3.54cm/sec) is the best high output moving coil ever made, ideal for moving magnet type phono stages, low gain tube phono stages and AV systems. The Ebony L (.26mV at 3.54cm/sec, 5ohm coil impedance) optimizes with high gain phono stages (>60dB) with input impedance of less than 300 ohms or when using step-up transformers. The Ebony TR is designed specifically for step-up transformers and has an ultra-low output of .1mV and impedance of 1 ohm.

Benz Ebony TR Specifications:

• Output: .1mV
• Stylus: 5x120µm
• Impedance: 1 ohm
• Loading range: >5 ohms
• Weight: 10.7g
• Compliance: 14cu
• Tracking force: 1.6-1.9g
